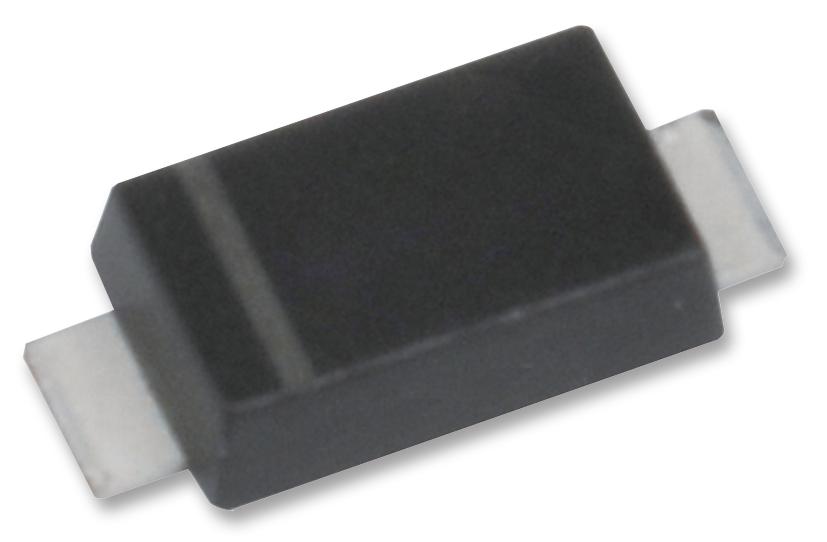

ROHM 1SS356FHTW11 Band Switching Diode
The 1SS356FH is a high-reliability, small mold band switching diode suitable for high frequency switching applications. It features low reverse F, with a capacitance of 1.2 pF at 6.0V and a high-frequency forward resistance of 0.9 Q at 100MHz. The diode supports forward currents up to 100 mA and reverse voltages of 35 V. It is packaged in embossed tape reels, with a tape width of 8 mm and tape series of TE17, making it ideal for automated surface-mount assembly in RF and high-speed circuits.
ROHM 1SS356FHTW11 Band Switching Diode Specifications:
- Forward current: 100 mA
- Reverse voltage: 35 V
- Junction temperature: 125 °C
- Storage temperature: -55 ~ 125 °C
- Forward voltage: 1.0 V at 10 mA
- Reverse current: 10 nA at 25 V
- Capacitance: 1.2 pF at VR=6.0V, f=1.0MHz
- High frequency forward resistance: 0.9 Q at 2.0 mA, f=100MHz
- Package: Tape series TE17, embossed tape, reel size 180 mm, taping width 8 mm
- Basic ordering unit: 3000 pcs
- Dimensions (max): D 0.9mm, b3 0.35mm, E 1.80mm, He 0.088mm
- Material: Epitaxial planar diode structure, RoHS compliant
- Operating temperature range: -55°C to +125°C
- Absolute maximum junction temperature: 125°C
- Capacitance between terminals: 1.2 pF at VR=6V, 1.0 MHz
- Designed for high frequency RF switching applications
- Features low forward resistance and small mold type for space-saving design
Buy the ROHM 1SS356FH – Reliable Band Switching Diodes for Industrial Applications
Get your ROHM 1SS356FH high reliability band switching diode today from our online store. Perfect for RF switching, high frequency circuits, and automated manufacturing, this small and efficient diode offers low capacitance and resistance. Packaged in embossed tape reels, it ensures accuracy and ease of surface-mount assembly. Order now to secure this essential component for your RF and high-speed project needs, ensuring superb performance, durability, and quality in every application. Buy online today for fast delivery and reliable operation.
Order your ROHM 1SS356FH high frequency switching diode today and ensure reliable performance in RF circuits and high-speed switching applications.
Frequently Asked Questions
Where can I buy ROHM 1SS356FHTW11?
You can click on the BUY or RFQ button to purchase 1SS356FHTW11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 1SS356FHTW11?
You can download the 1SS356FHTW11 datasheet or visit the ROHM website for support.
Who is the manufacturer of 1SS356FHTW11?
ROHM
