ROHM 1SS380TFTE17 Switching Diode
The 1SS380TF is a high-speed switching diode designed for reliable performance in fast switching applications. Featuring ultra-small UMD2 construction, it offers excellent reliability and low junction capacitance. Suitable for automated circuit designs, this diode boasts a maximum reverse voltage of 40V and forward voltage of approximately 1.2V at 100mA. Its compact JEDEC SOD-323 package ensures optimal space efficiency for modern electronic devices, making it ideal for high-speed, high-reliability circuits requiring quick switching and longevity.
ROHM 1SS380TFTE17 Switching Diode Specifications:
- Package: JEDEC SOD-323 (SC-90/A)
- Reverse Voltage: 40 V
- DC Reverse Voltage: 35 V
- Forward Current: 225 mA
- Average Rectified Forward Current: 100 mA
- Surge Current (t=1s): 400 mA
- Junction Temperature: 150 °C
- Storage Temperature: -55 to +150 °C
- Forward Voltage: 1.2 V at 100mA
- Reverse Current: 0.01 pA at 20V
- Capacitance: 5.0 pF at 0.5V, 1MHz
- Dimensions: Land size approximately 1.4 mm x 1.0 mm
- Material: Silicon epitaxial planar structure
- Built for high-speed switching and reliable diode operation

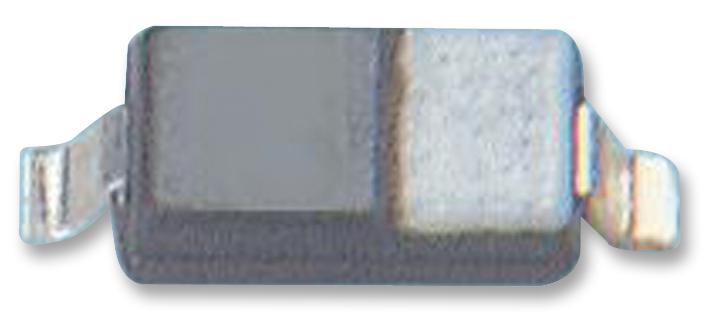

Buy the Buy ROHM 1SS380TF Part Number 1SS380TFTE17 Online
Order the ROHM 1SS380TF high-speed switching diode online today for your electronic designs. This compact diode features a maximum reverse voltage of 40V, a forward voltage of approximately 1.2V at 100mA, and low junction capacitance, perfect for fast switching circuits. Its small JEDEC SOD-323 package ensures space efficiency and enhanced durability, making it suitable for various high-reliability applications. Purchase now to ensure optimal performance and long-lasting circuit operation with this dependable diode.
Buy ROHM 1SS380TF now and experience unmatched reliability and performance for fast switching diode applications.
Frequently Asked Questions
Where can I buy ROHM 1SS380TFTE17?
You can click on the BUY or RFQ button to purchase 1SS380TFTE17 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 1SS380TFTE17?
You can download the 1SS380TFTE17 datasheet or visit the ROHM website for support.
Who is the manufacturer of 1SS380TFTE17?
ROHM
