ROHM 2SAR513PHZGT100 Power Transistor
The 2SAR513P HZG is a high-speed, low saturation voltage power transistor in SOT-89 packaging designed for use in low frequency amplification and switching applications. It features high-speed switching capabilities, a collector-base voltage of -50V, collector-emitter voltage of -50V, and a maximum collector current of -1A. Qualified for AEC-Q101 standards, this transistor provides reliable performance for automotive, industrial, and general electronic circuits requiring robust switching and amplification solutions, with efficient power dissipation and excellent thermal characteristics suitable for high-reliability environments.
ROHM 2SAR513PHZGT100 Power Transistor Specifications:
- Package: SOT-89
- Package Size Code: PTS
- Taping: 4540 mm
- Reel Size: T100
- Tape Width: 12 mm
- Quantity: 1000 pcs
- Collector-base voltage: -50 V
- Collector-emitter voltage: -50 V
- Emitter-base voltage: 6 V
- Collector current: -1 A
- Power dissipation: 2.0 W
- Maximum junction temperature: 150°C
- Storage temperature range: -55°C to +150°C
- Collector-emitter breakdown voltage: -50 V
- Emitter-base breakdown voltage: 6 V
- Collector cut-off current: -1.0 pA
- Transition frequency: 400 MHz
- Collector saturation voltage: 200 mV at -500 mA, -25 mA
- DC current gain: 180 to 450
- Output capacitance: 12 pF
- Switching time: 40 ns
- Fall time: 35 ns
- Mounted on ceramic board, 40x40x0.7mm

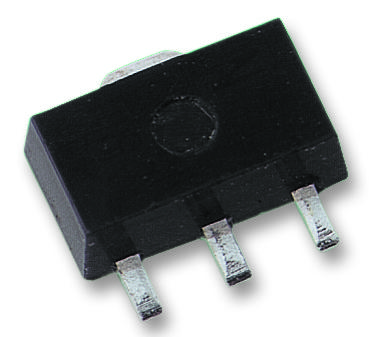

Buy the ROHM 2SAR513P HZG – Reliable Power Transistor for Industrial Applications
Order the ROHM 2SAR513P HZG power transistor online now—engineered for high-speed switching, low saturation voltage, and reliable operation in industrial and automotive electronics. With a compact SOT-89 package, it ensures excellent thermal performance and high current capacity. Perfect for low-frequency amplification and switching applications, this transistor provides robust durability, consistent performance, and ease of integration into complex circuits. Make your purchase today and enhance your electronic projects with a trusted, high-quality power switching component.
Get ROHM 2SAR513P HZG today—built for precision and long-lasting durability in high-speed switching and amplification circuits.
Frequently Asked Questions
Where can I buy ROHM 2SAR513PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR513PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR513PHZGT100?
You can download the 2SAR513PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR513PHZGT100?
ROHM
