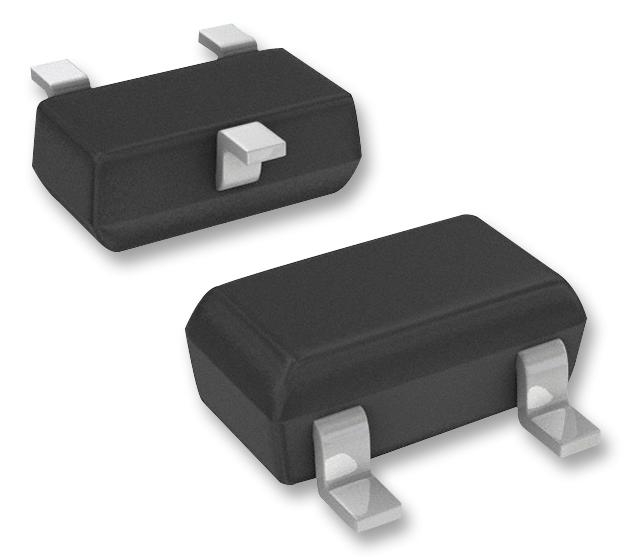

ROHM 2SB1198KFRAT146Q Power Transistor
The 2SB1198K FRA is a high-efficiency NPN power transistor designed for driver applications, rated for -80V collector-base and collector-emitter voltages with a maximum current of -500mA. It features low saturation voltage of around -200mV and high breakdown voltages, making it suitable for high-reliability circuits. Encapsulated in SOT-346 (SC-59), this TECTRONICS device boasts a junction temperature up to 150°C, low power dissipation, and is compatible with surface-mount technology. Ideal for driving loads in automotive, industrial, and consumer electronics, the transistor ensures stable operation and high performance including a transition frequency of 180MHz.
ROHM 2SB1198KFRAT146Q Power Transistor Specifications:
- Collector-base breakdown voltage BVcgo: -80 V
- Collector-emitter breakdown voltage BVceo: -80 V
- Emitter-base breakdown voltage BVego: +5 V
- Collector current Ic: -500 mA
- Power dissipation Pp: 200 mW
- Junction temperature: 150°C
- Storage temperature range: -55°C to +150°C
- Package: SOT-346 (SC-59)
- Transition frequency fT: 180 MHz
- Collector cut-off current Icpo: 500 nA
- Collector-emitter saturation voltage Vce(sat): -500 mV
- Electrical characteristics tested at T=25°C
- Designed for high reliability applications
- RoHS compliant, AEC-Q101 qualified
Buy the ROHM Series FRA High Voltage Power Transistor: 2SB1198K
Purchase the high-performance 2SB1198K power transistor online today. Engineered for driver circuits, it features high breakdown voltage, low saturation, and reliable operation. Compact surface-mount package ensures easy integration into automotive, industrial, and consumer electronics. With a maximum collector-emitter voltage of -80V and collector current of -500mA, this transistor supports high efficiency and stable performance. Its AEC-Q101 qualification guarantees quality for demanding environments. Enjoy fast shipping, secure checkout, and expert support when you buy the 2SB1198K online for your next project.
Get ROHM 2SB1198K power transistor today—built for precision and long-lasting durability in driver and switching applications.
Frequently Asked Questions
Where can I buy ROHM 2SB1198KFRAT146Q?
You can click on the BUY or RFQ button to purchase 2SB1198KFRAT146Q from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SB1198KFRAT146Q?
You can download the 2SB1198KFRAT146Q datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SB1198KFRAT146Q?
ROHM
