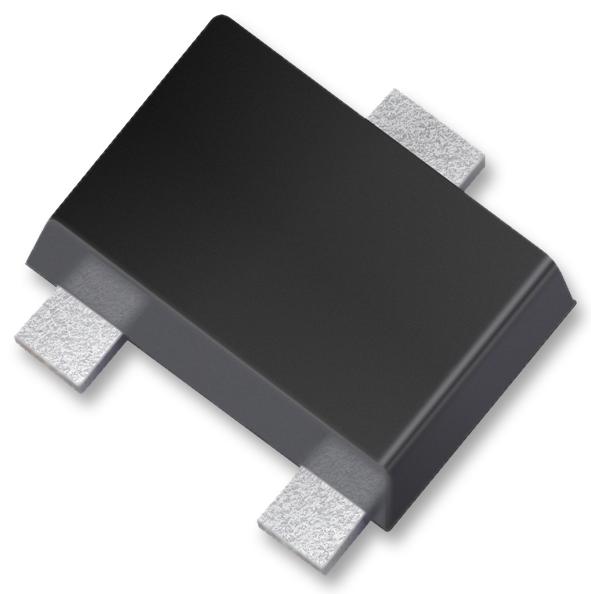

ROHM 2SC5658FHAT2L Small Signal NPN Transistor
The ROHM 2SC5658FHAT2L is a general-purpose small signal NPN transistor designed for a wide range of applications. Its AEC-Q101 qualification ensures reliability in automotive environments. Key features include low collector capacitance (Cob = 2.0pF Typ.) and complementary operation with the 2SA2029 FHA. This transistor is ideal for use in amplifier circuits, switching applications, and other general-purpose electronic designs where a compact and reliable NPN transistor is required.
ROHM 2SC5658FHAT2L Small Signal NPN Transistor Specifications:
- VCEO: 50V
- IC: 150mA
- Cob: 2.0pF (Typ.)
- Complements: 2SA2029 FHA
- VCBO: 60V
- VCEO_breakdown: 50V
- VEBO_breakdown: 7V
- ICBO: 100nA
- IEBO: 100nA
- VCE_sat: 400mV
- hFE: 120-390
- fT: 180MHz
- Junction_temperature: 150°C
- Storage_temperature_range: -55 to +150°C
- Package: SOT-723 (VMT3)
- Tape_width: 8mm
- Basic_ordering_unit: 8000 pcs
Buy the 2SC5658FHAT2L ROHM Small Signal NPN Transistor | myMectronic
Purchase the ROHM 2SC5658FHAT2L securely and efficiently to ensure your project's success.
Buy Now
Frequently Asked Questions
Where can I buy ROHM 2SC5658FHAT2L?
You can click on the BUY or RFQ button to purchase 2SC5658FHAT2L from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SC5658FHAT2L?
You can download the 2SC5658FHAT2L datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SC5658FHAT2L?
ROHM
