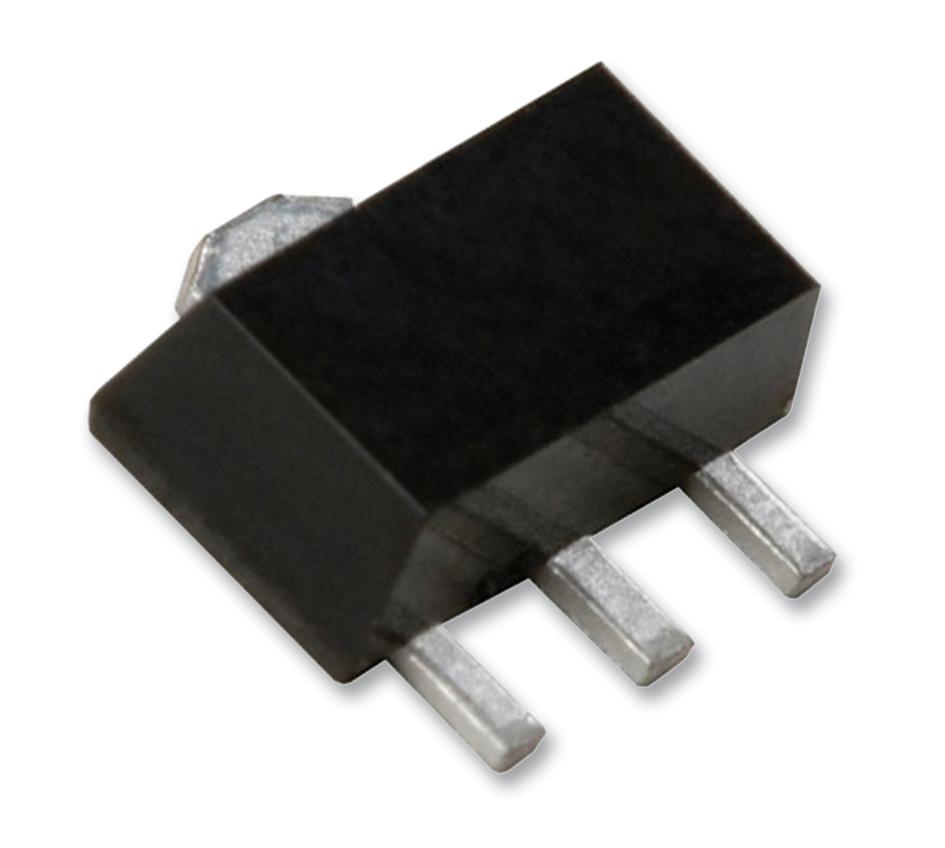

ROHM 2SCR375PHZGT100Q Middle Power Transistor
The ROHM 2SCR375PHZGT100Q is a middle power transistor suitable for a variety of applications, particularly in low-frequency amplifier circuits. Its key features include a low saturation voltage (VCE(sat) = 300mV max) and AEC-Q101 qualification, making it suitable for automotive applications. With a collector-emitter voltage (VCEO) of 120V and a collector current (IC) of 1.5A, this transistor provides robust performance. It is packaged in SOT-89 or SC-62 configurations, offering flexibility in circuit design. The ROHM 2SCR375PHZGT100Q is a reliable choice for power amplification and switching applications.
ROHM 2SCR375PHZGT100Q Middle Power Transistor Specifications:
- VCEO: 120V
- IC: 1.5A
- VCE(sat): 300mV (Max.) (IC/IB=800mA/80mA)
- AEC-Q101: Qualified
- Package: SOT-89, SC-62
- Taping code: T100
- Reel size: 180mm
- Tape width: 12mm
- Quantity: 1000 pcs
- VCBO: 120V
- VEBO: 6V
- ICP: 3.0A
- PD: 0.5W, 2.0W
- Junction temperature: 150°C
- Range of storage temperature: -55 to +150°C
- BVCBO: 120V
- BVCEO: 120V
- IEBO: 1.0μA
- ICBO: 1.0μA
- DC current gain (hFE): 120-390
- Transition frequency (fT): 200MHz
- Output capacitance (Cob): 12pF
