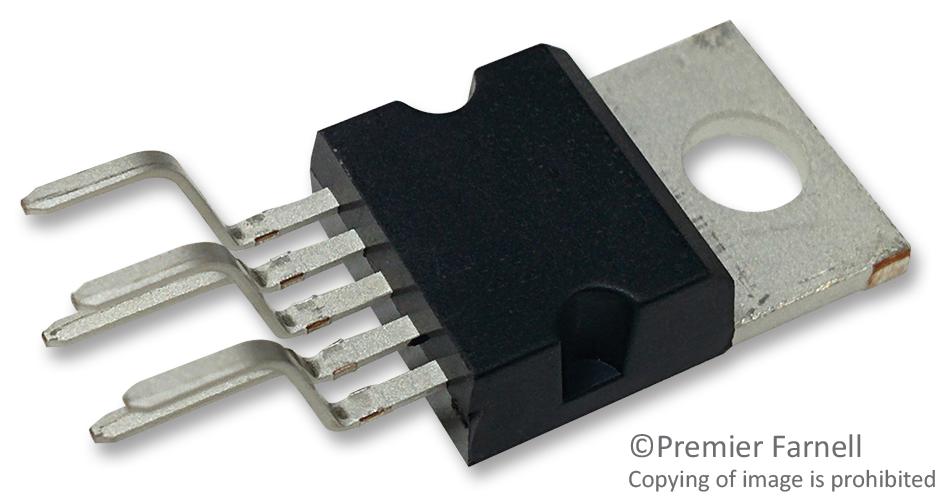

ROHM BA00DD0WCPV5E2 Adjustable Voltage Regulator
The BA00DD0WCPV5E2 series are high-precision, low-saturation adjustable linear voltage regulators capable of providing up to 2A output current. These regulators feature built-in over-current, thermal shutdown, and over-voltage protection circuits, ensuring safety and reliability. Designed for a wide operating temperature range from -40°C to +125°C, they support input voltages up to 25V and allow external resistance configuration for output voltage adjustment. Ideal for DSP power supplies, consumer electronics, and precision voltage regulation applications, they offer stable performance with low dropout voltage and excellent ripple rejection.
ROHM BA00DD0WCPV5E2 Adjustable Voltage Regulator Specifications:
- Input Voltage Range: 3.0V to 25V
- Maximum Output Current: 2A
- Output Voltage: Adjustable via external resistor, typically 1.2V to 20V
- Dropout Voltage: 0.3V to 0.7V depending on load
- Built-in Over-current and Thermal Shutdown Protection
- Ripple Rejection: 55dB (typ.) at 20Hz
- Line Regulation: 20-100mV
- Load Regulation: 50-100mV
- Operating Temperature Range: -40°C to +125°C
- Package: TO220FP-5 (high power dissipation, with heat sink option)
- Storage Temperature: -55°C to +150°C
- Package Dimensions: 10.0 mm x 20.12 mm x 4.60 mm approx.
- Supports external resistance for voltage customization
- Supports stable operation with ceramic or electrolytic capacitors
- Supports reverse current protection via external diode
- Regulation accuracy: ±1%
Buy the ROHM Series Adjustable Voltage Regulator: BA00DD0WCPV5E2
Purchase the ROHM BA00DD0WCPV5E2 series online today. These adjustable regulators support up to 2A output current, feature built-in protection circuits, and operate across a wide temperature range from -40°C to +125°C. Ideal for power supplies in consumer electronics, DSP systems, and precision voltage regulation, they offer stable low dropout voltage, excellent ripple rejection, and easy external resistance-based voltage adjustment. Ensure reliable performance with this robust, high-quality component for your critical applications.
Get ROHM BA00DD0WCPV5E2 today—built for precision regulation, high current capacity, and durability for your electronic projects.
Frequently Asked Questions
Where can I buy ROHM BA00DD0WCPV5E2?
You can click on the BUY or RFQ button to purchase BA00DD0WCPV5E2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BA00DD0WCPV5E2?
You can download the BA00DD0WCPV5E2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BA00DD0WCPV5E2?
ROHM
