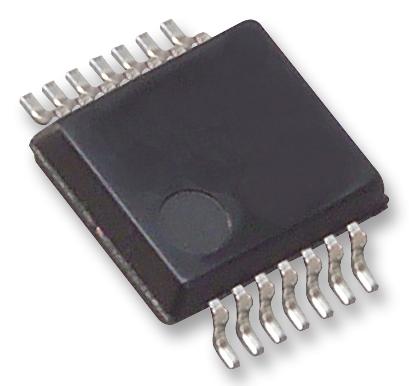

ROHM BA4564RFVE2 Low Noise Operational Amplifier
The BA4564RFV is a low noise, high-reliability operational amplifier series designed for audio and high-precision applications. It features ultra-low distortion, wide supply voltage range from +4V to +15V, and operates from -40°C to +105°C. This series is suitable for use in high-fidelity audio equipment, sensors, and instrumentation requiring low input-referred noise, high voltage gain, and exceptional stability. Available in compact packages including SSOP-B14, it ensures easy integration into various electronic systems with excellent thermal and electrical performance.
ROHM BA4564RFVE2 Low Noise Operational Amplifier Specifications:
- Supply Voltage Range: +4V to +15V
- Operating Temperature Range: -40°C to +105°C
- Input Offset Voltage: 0.5mV (max), 7mV (full range)
- Input Bias Current: 50nA (typ), 200nA (full range)
- Input Offset Current: 5nA (typ), 200nA (full range)
- Input Referred Noise Voltage: 1.0nV/√Hz
- Total Harmonic Distortion+Noise: 0.003%
- Slew Rate: 4 V/μs
- Unity Gain Bandwidth: 4 MHz
- Package Types: SSOP-B14, TSSOP-B8, MSOP8
- Maximum Output Voltage Swing: ±10V
- Common Mode Rejection Ratio: 70-90dB
- Power Dissipation: Based on package and thermal conditions
Buy the ROHM Series High-Performance Operational Amplifier: BA4564RFV
Order the ROHM BA4564RFV low noise operational amplifier online today to enhance your audio, sensor, and instrumentation projects. Its extended operating voltage from +4V to +15V, combined with low distortion and high stability, ensures premium performance in demanding environments. Available in compact packages like SSOP-B14, this amplifier provides excellent thermal handling and electrical consistency. Perfect for high-fidelity audio systems, measuring instruments, and precision sensor interfaces, the BA4564RFV guarantees reliable operation in industrial or consumer electronics with easy online purchasing options.
Buy ROHM BA4564RFV operational amplifier now and experience unmatched low noise performance, wide supply voltage flexibility, and high reliability for precision applications.
Frequently Asked Questions
Where can I buy ROHM BA4564RFVE2?
You can click on the BUY or RFQ button to purchase BA4564RFVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BA4564RFVE2?
You can download the BA4564RFVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BA4564RFVE2?
ROHM
