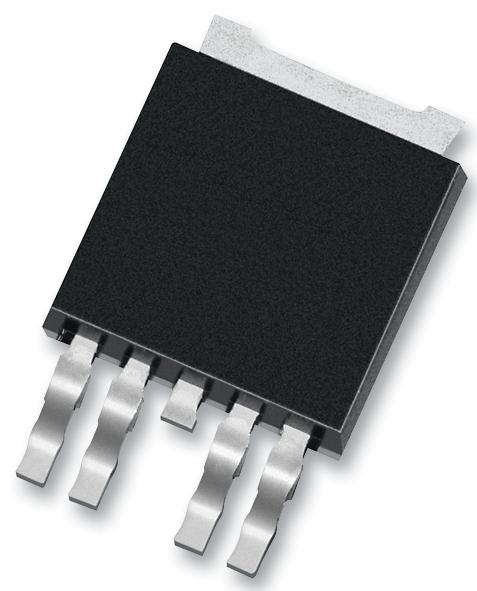

ROHM BD15KA5WFPE2 Low Dropout Regulator
The BDxxKA5 series are low-saturation linear regulators offering output currents up to 500mA with +1% voltage accuracy. Available in various packages including SOP8 and TO252, they feature built-in overcurrent and thermal shutdown protections for reliable operation. Compatible with ceramic capacitors of 1μF or greater, these regulators are suitable for applications like microcontrollers, TVs, car audio, HDDs, PCs, and DVDs. The series includes fixed and variable voltage options, with or without ON/OFF switches, ensuring versatile deployment in electronic systems needing stable power regulation.
ROHM BD15KA5WFPE2 Low Dropout Regulator Specifications:
- Output current: 500mA maximum
- Output voltage: 1.0V to 4.0V (fixed or variable)
- Input power supply voltage: Max 5.5V
- Operating temperature range: -40°C to +105°C
- Package options include SOP8, TO252-3, TO252-5
- Built-in overcurrent and thermal shutdown protection
- Supports ceramic capacitors (≥1μF recommended)
- Dropout voltage: approximately 0.12V at 200mA
- Line regulation: 10-35mV
- Load regulation: 25-75mV
- Ripple rejection: up to 50dB at 120Hz
- Pin configuration includes enable, output, input, ground, and control for ON/OFF switching
Buy the Buy ROHM BD15KA5WFPE2 Online
Purchase the ROHM BD15KA5WFPE2 linear regulator online to ensure stable power with high precision and safety features. Its low dropout voltage and built-in overcurrent and thermal protection make it ideal for powering microcontrollers, TVs, car audio systems, HDDs, PCs, and DVDs. Available in various packages including SOP8 and TO252, this versatile regulator supports ceramic capacitors of 1μF or more for optimal performance. Efficient and reliable, the BD15KA5WFPE2 guarantees consistent output voltage, protecting your sensitive electronics from power fluctuations. Buy now to enhance your device’s power reliability!
Buy ROHM BD15KA5WFPE2 now and experience reliable power regulation for microcontrollers, TVs, and automotive electronics with built-in protections.
Frequently Asked Questions
Where can I buy ROHM BD15KA5WFPE2?
You can click on the BUY or RFQ button to purchase BD15KA5WFPE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD15KA5WFPE2?
You can download the BD15KA5WFPE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD15KA5WFPE2?
ROHM
