ROHM BD18326NUFME2 Automotive LED Driver
The BD18326NUF-M is a compact, automotive-grade constant current LED driver IC capable of handling up to 40 V and 600 mA. Designed for automotive exterior and interior lighting, it offers high reliability with integrated safety functions such as thermal de-rating, open detection, short circuit protection, over-voltage mute, and output fault flag. Its small VSON10FV3030 package measures 3.0 mm x 3.0 mm x 1.0 mm, making it suitable for socket LED applications, providing stable current regulation, PWM dimming support, and operational safety across a wide temperature range.
ROHM BD18326NUFME2 Automotive LED Driver Specifications:

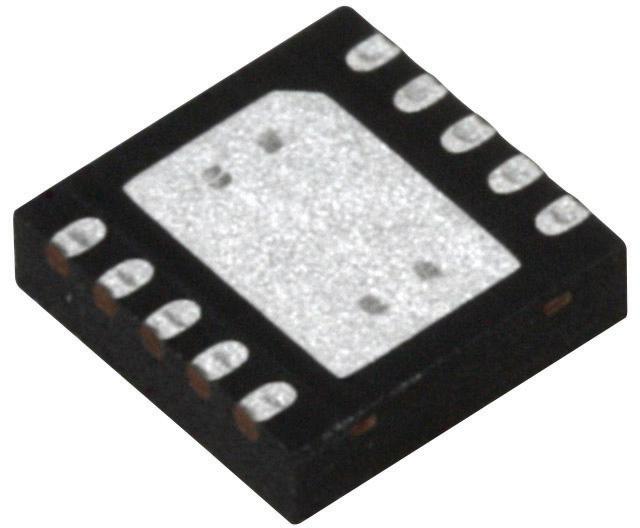

- Package: VSON10FV3030, dimensions: 3.0 mm x 3.0 mm x 1.0 mm
- Input Voltage Range: 5.5 V to 20 V
- Maximum Output Current: 600 mA at 50% ON duty
- Output Accuracy: 45%
- Operating Temperature: -40°C to +150°C
- Thermal De-rating Function with thermistor input
- Built-in safety: LED open detection, short circuit, over-voltage mute, output fault flag
- PWM Dimming Frequency: 200-750 Hz
- Output voltage: Vout capable of handling voltage drops up to approximately 0.9-1.2 V under load
- Protection: UVLO (Under Voltage Lock Out), TSD (Thermal Shutdown), OUT SCP (short circuit protection), SET SCP
- Pin configuration includes VIN, BPCNT, PBUS, CRT, DISC, THD, SET, GND, ISINK, OUT
Buy the Buy ROHM BD18326NUF-M Part Number BD18326NUF-M Online
Purchase the ROHM BD18326NUF-M online today to benefit from a high-reliability automotive-grade constant current LED driver. It features comprehensive safety functions including thermal de-rating, LED open detection, short circuit protection, over-voltage mute, and fault flag output, ensuring stable operation in demanding environments. Its compact VSON10FV3030 package fits in socket applications, providing precise current regulation, PWM dimming support, and a wide temperature range from -40°C to +150°C. Ideal for exterior and interior automotive lighting solutions, offering durability and high performance for modern automotive lighting systems.
Buy ROHM BD18326NUF-M now and experience unmatched reliability and performance with advanced safety features for automotive LED lighting.
Frequently Asked Questions
Where can I buy ROHM BD18326NUFME2?
You can click on the BUY or RFQ button to purchase BD18326NUFME2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD18326NUFME2?
You can download the BD18326NUFME2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD18326NUFME2?
ROHM
