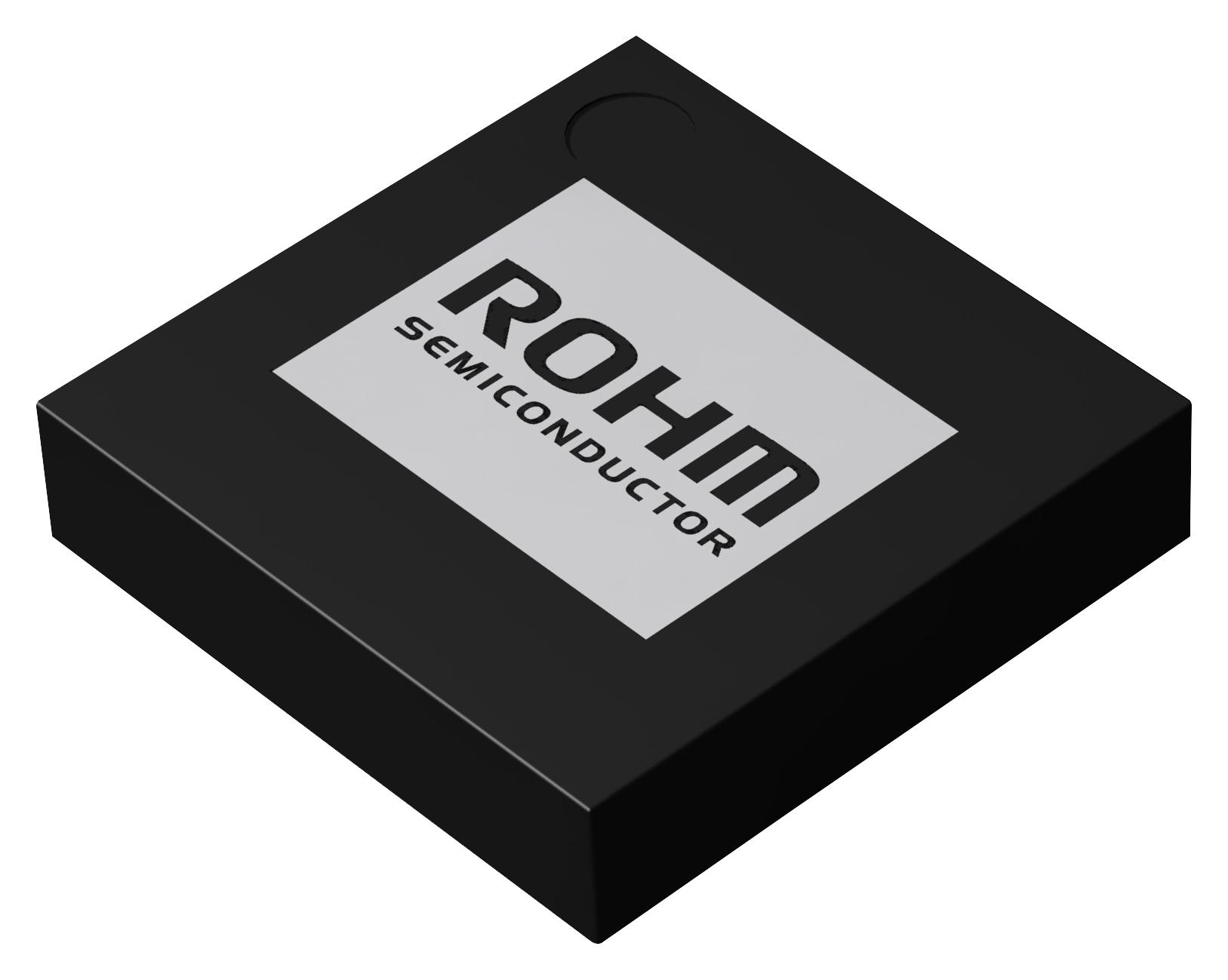

ROHM BD26503GULE2 LED Driver Module
The BD26503GUL is a compact, high-performance LED matrix driver designed for mobile phones and slender electronic devices. It features control for 7x17 (119 dot) LED matrices through internal 7-channel PMOS switches and 17 LED drivers, supporting adjustable luminance and firefly lighting effects. The device offers SPI and I2C interfaces, along with automatic scrolling, slope control, and thermal shutdown functions. Its small CSP package (48 pins, 3.6mm x 3.6mm, height max 0.55mm) makes it ideal for slim mobile devices, with a power dissipation of 1550 mW and low-voltage operation support.
ROHM BD26503GULE2 LED Driver Module Specifications:
- Package: 48-pin VCSP50L3, size 3.6mm x 3.6mm, height 0.55mm, ball pitch 0.5mm
- Maximum Power Dissipation: 1550mW
- Operating Voltage: VBAT 5.5V to 27V, VINSW 5.5V to 27V, VIO 1.65V to 5.5V
- Control for 7x17 LED matrix with 119 dots, via 17 current drivers and 7 PMOS switches
- Adjustable LED current: 0-20mA in 16 steps, PWM luminance control: 64 steps
- Features: automatic scrolling, slope delay, thermal shutdown, and slope control
- Supports SPI and I2C interface modes, max 400kHz for I2C
- Temperature Range: -40°C to +85°C for operation, -55°C to +150°C for storage
Buy the ROHM BD26503GUL – Reliable LED Driver for Industrial Applications
Discover the ROHM BD26503GUL LED driver module designed for slim mobile phones and industrial displays. It controls 7x17 LED matrices with adjustable brightness, SLOPE, scrolling, and thermal shutdown features. Its compact CSP package provides a small footprint while maintaining high performance with PWM and current regulation. Suitable for applications requiring precise LED control, this driver ensures reliable illumination and efficient power consumption. Order online now to enhance your electronic projects with this durable, high-quality LED matrix driver.
Get ROHM BD26503GUL today—built for precision and long-lasting durability in LED matrix control for industrial devices.
Frequently Asked Questions
Where can I buy ROHM BD26503GULE2?
You can click on the BUY or RFQ button to purchase BD26503GULE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD26503GULE2?
You can download the BD26503GULE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD26503GULE2?
ROHM
