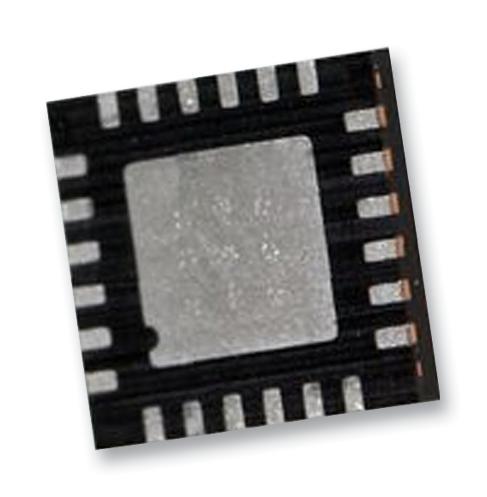

ROHM BD28623MUVE2 Class D Audio Amplifier
The BD28623MUV is a compact Class D speaker amplifier designed for space-saving high-quality audio playback. It delivers 20W+20W output power with high efficiency and low heat generation, eliminating the need for external heatsinks. Suitable for flat-panel TVs, home audio systems, amusement equipment, and desktop PCs, it features a digital audio interface, soft muting, overheat, and short-circuit protection. Its small package size and low power consumption make it ideal for high-performance, low-profile audio applications in various consumer electronics.
ROHM BD28623MUVE2 Class D Audio Amplifier Specifications:
- Supply Voltage: 8.5V to 24V
- Speaker Output Power: 17W+17W (Typ) at 18V, Ri=80Ω, Gain=26dB
- Total Harmonic Distortion: 0.08% (Typ) at Po=1W
- Crosstalk: 90dB (Typ)
- PSRR: 60dB (Typ)
- Output Noise Voltage: 150pV/ims (Typ)
- Standby Current: 33μA (Typ)
- Operating Temperature Range: -25°C to +85°C
- Package: VQFN024V4040, 4.00mm×4.00mm×1.00mm
- Gain Variants: 17dB / 20dB / 26dB
- Wide Power Supply Range: 8.5V to 24V
- Protection Features: Overheat, Under Voltage, Output Short, DC Voltage, Clock Stop
- Efficiency: High, with low heat dissipation
- Applications include flat-panel TVs, sound bars, home audio, desktops, amusement equipment
Buy the Buy ROHM Class D Audio Amplifier Part Number BD28623MUVE2 Online
Purchase the ROHM BD28623MUVE2 Class D speaker amplifier online today and enjoy high efficiency, low heat, and reliable protection features. This compact power amplifier, ideal for flat-panel TVs, sound bars, and home audio systems, delivers 20W+20W output power with minimal distortion and noise. Its advanced protection circuits safeguard against overheating, short circuits, and DC voltage faults, ensuring long-term durability. With a range of gain options and low power consumption, it's perfect for space-constrained, high-quality audio applications. Experience seamless online ordering for fast delivery and professional performance.
Order your ROHM BD28623MUVE2 series high-efficiency Class D speaker amplifier today and enhance your audio devices with dependable, low-heat power performance.
Frequently Asked Questions
Where can I buy ROHM BD28623MUVE2?
You can click on the BUY or RFQ button to purchase BD28623MUVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD28623MUVE2?
You can download the BD28623MUVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD28623MUVE2?
ROHM
