ROHM BD34602FSME2 Sound Processor
BD34602FS-M is a high-quality 6-channel sound processor featuring independent volume control with a built-in advanced switch circuit to reduce switching pop noise. It supports external input mixing, has excellent linearity with Total Harmonic Distortion of 0.0004%, and is compatible with BD3461FS with a common package for easy replacement. Designed for automotive audio systems, navigation, and multi-channel audio applications, it operates at temperatures from -40°C to +85°C, with a compact SSOP-A24 package measuring 10.00mm x 7.80mm x 2.10mm, ensuring reliable performance for complex sound processing.
ROHM BD34602FSME2 Sound Processor Specifications:

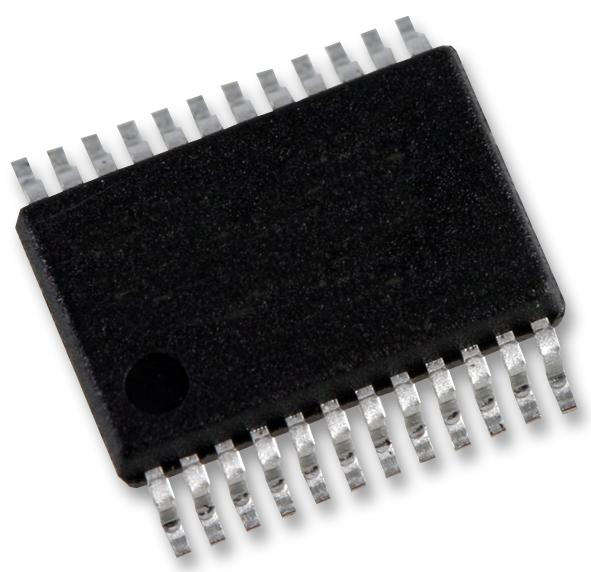

- Package: SSOP-A24, Dimensions: 10.00mm x 7.80mm x 2.10mm
- Total harmonic distortion: 0.0004%
- Maximum input voltage: 2.35Vrms (Typ)
- Maximum output voltage: 2.35Vrms (Typ)
- Output noise voltage: 1.3uVrms (Typ)
- Residual output noise voltage: 1.3uVrms (Typ)
- Ripple rejection: 80dB (Typ)
- Operating temperature range: -40°C to +85°C
- Built-in independent volume control with 1dB/Step adjustment
- Advanced switch circuit reduces switching pop noise during volume change
- Supports external input mixing and DIFF amplifier inputs
- Compatible with control via 3.3V P*C-BUS controller
- Input impedance: 70kΩ to 130kΩ
- Power supply: Vcc 7.0V to 9.5V, typical 8.5V
- Power dissipation approximate: 1.0W
Buy the Buy ROHM BD34602FS-M High-Quality 6-channel Sound Processor Part Number BD34602FS-M Online
Purchase the ROHM BD34602FS-M Sound Processor online today to ensure high-quality audio output with independent volume control, advanced switching noise reduction, and versatile external input capabilities. This compact, automotive-grade IC operates reliably within a temperature range of -40°C to +85°C, making it ideal for car audio and navigation systems. Its advanced circuitry minimizes switching pop noise, providing a seamless listening experience. Order now to upgrade your audio projects with this professional-grade, easy-to-integrate sound processing solution available for immediate online purchase.
Order your ROHM BD34602FS-M Series6-channel sound processor today and enhance your audio systems with high-fidelity sound and reliable noise reduction features.
Frequently Asked Questions
Where can I buy ROHM BD34602FSME2?
You can click on the BUY or RFQ button to purchase BD34602FSME2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD34602FSME2?
You can download the BD34602FSME2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD34602FSME2?
ROHM
