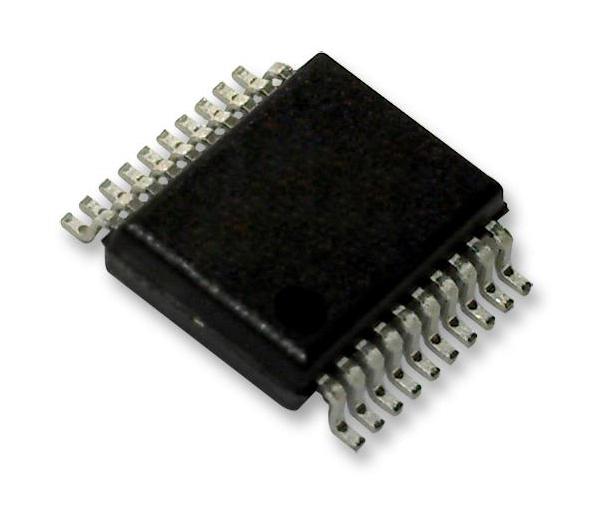

ROHM BD3464FVE2 Electronic Volume Module
The BD3464FV is a 4-channel electronic volume with a built-in advanced switch circuit, supporting audio applications such as car audio, navigation, and multimedia equipment. It offers a volume control range from +23dB to -79dB with a total harmonic distortion of 0.0004% and low output noise. Its energy-saving design operates within a voltage range of 7.0V to 9.5V, featuring easy PCB layout, I2C bus control, and high sound quality optimized for various audio systems in automotive and consumer electronics environments.
ROHM BD3464FVE2 Electronic Volume Module Specifications:
- Power Supply Voltage Range: 7.0V to 9.5V
- Total Harmonic Distortion: 0.0004%
- Maximum Input Voltage: 2.35Vrms
- Circuit Current (No Signal): 25mA (Typ)
- Volume Control Range: +23dB to -79dB
- Package: SSOP-B20, Size: 6.50mm x 6.40mm x 1.45mm
- Operating Temperature Range: -40°C to +85°C
- Output Noise Voltage: 1.9uVrms(Typ), Residual: 1.6uVrms(Typ)
- Cross-talk: -105dB (Typ)
- Support for I2C control (3.3V / 5V compatible)
- Supports high-quality audio up to 192kHz sampling rate
- Built-in advanced switch circuit for minimal switching noise
- Low power consumption via Bi-CMOS process design
- Pin configuration includes input terminals INF1, INF2, INR1, INR2, and output terminals OUTF1, OUTF2, OUTR1, OUTR2.
Buy the ROHM BD3464FV – Reliable Volume Control for Industrial Applications
Secure your audio system upgrade today by purchasing the ROHM BD3464FV electronic volume module online. This 4-channel device features an advanced switch circuit, supports high-resolution audio up to 192kHz, and offers precise volume control from +23dB to -79dB. With low distortion, minimal switching noise, and compatibility with I2C bus control, it is ideal for automotive, multimedia, and high-quality audio applications. Order now and enhance your device’s sound performance with proven reliability from ROHM.
Buy ROHM BD3464FV now and experience unmatched reliability and performance in advanced audio volume management.
Frequently Asked Questions
Where can I buy ROHM BD3464FVE2?
You can click on the BUY or RFQ button to purchase BD3464FVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD3464FVE2?
You can download the BD3464FVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD3464FVE2?
ROHM
