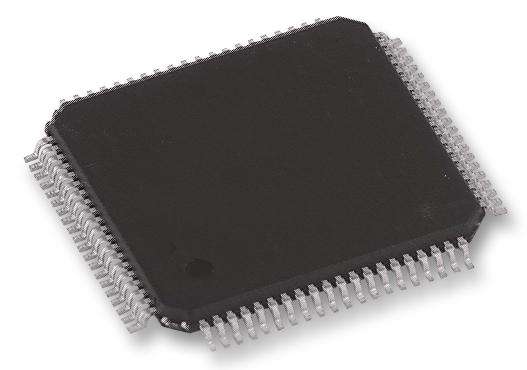

ROHM BD34704KS2 Sound Processor
The BD34704KS2 is a high-performance 8-channel sound processor designed for home theater systems and AV receivers. It features independent volume control with micro-step technology to reduce switching pop noise, supporting 7.1ch surround sound applications. The IC includes 12-channel input selectors extendable to 18 channels, with provisions for multi-zone operation and high output voltage of 4.2 Vrms. Its low THD of 0.0004% and cross-talk of -105dB ensure premium audio quality. Compact in 16.00mm x 16.00mm package, it offers versatile control via 2-wire serial interface and is suitable for sophisticated audio processing environments.
ROHM BD34704KS2 Sound Processor Specifications:
- Number of channels: 8ch independent volume system, extendable to 18 channels
- Maximum output voltage: 4.2 Vrms (Typ)
- Total harmonic distortion: 0.0004% (Typ)
- Output noise voltage: 1.2 µVrms (Typ)
- Residual noise voltage: 1.0 µVrms (Typ)
- Cross-talk between channels: -105 dB (Typ)
- Cross-talk between selectors: -105 dB (Typ)
- Input impedance: 70-130 kΩ (typ)
- Dimensions: 16.00mm x 16.00mm x 1.60mm (SQFP-T80C package)
- Supported modes: 2-wire serial control, compatible with 3.3/5V systems
- Applications: AV receivers, home theater systems, multi-zone audio processing
- Package: SQFP-T80C with tray or embossed tape and reel
- Power dissipation: Approx. 1.75W on standard board (70x70x1.6mm)
Buy the ROHM BD34704KS2 – Reliable Sound Processor for Industrial Applications
Enhance your home theater and professional audio setups with the ROHM BD34704KS2 sound processor. Its 8-channel independent volume with micro-step technology ensures pristine audio quality, minimal pop noise, and flexible multi-zone support. Compact and highly integrable in 16mm x 16mm packages, this IC is perfect for AV receivers and high-fidelity systems. Easy serial control and low distortion make it the ideal choice for premium audio projects. Order now online and give your sound systems reliable, high-quality performance.
Order your ROHM BD34704KS2 sound processor today and elevate your audio systems with our high-quality, micro-step controlled volume solutions.
Frequently Asked Questions
Where can I buy ROHM BD34704KS2?
You can click on the BUY or RFQ button to purchase BD34704KS2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD34704KS2?
You can download the BD34704KS2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD34704KS2?
ROHM
