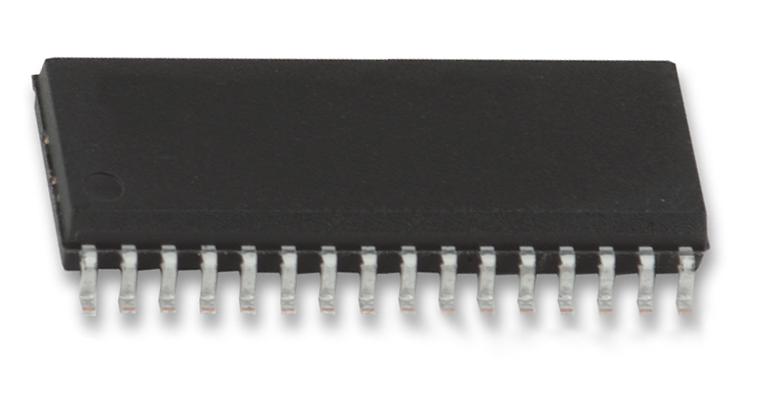

ROHM BD3491FSE2 Sound Processor
The BD3491FS is a versatile analog sound processor featuring built-in surround sound functions, a 6-input selector, and a 2-band equalizer (Bass/Treble) with gain adjustments from -14dB to +14dB. It includes bass boost, surround sound, and volume control with a range from 0dB to -87dB, along with low noise and distortion specifications. Designed for mini and micro audio components, it suits TV and DVD equipment, offering easy PCB layout with an SSOP-A32 package operating within -40°C to +85°C temperature and low current consumption.
ROHM BD3491FSE2 Sound Processor Specifications:
- Package: SSOP-A32, dimensions 13.60mm x 7.80mm x 2.01mm
- Operating Temperature Range: -40°C to +85°C
- Power Supply Voltage: 4.75V to 9.5V
- Current upon no signal: 7mA (typ)
- Total Harmonic Distortion: 0.002% (typ)
- Maximum Input Voltage: 2.4Vrms (typ)
- Volume Control Range: 0dB to -87dB/1dB steps
- Output Noise Voltage: 5μVrms (typ)
- Crosstalk between Selectors: 100dB (typ)
- Built-in stereo selector, low noise, suitable for mobile audio
- Surround sound function, multiple tone and gain adjustments
- Built with Bi-CMOS process for low energy and heat, optimized PCB layout for minimal area
- Applications in TV, DVD, mini audio devices
Buy the Buy ROHM BD3491FS Part Number BD3491FSE2 Online
Enhance your audio projects with the ROHM BD3491FS sound processor. Featuring built-in surround sound, a 6-input selector, 2-band equalizer, bass boost, and volume control, this compact IC is perfect for TV, DVD, and mini audio devices. With operating temperature from -40°C to +85°C, low power current of 7mA, and excellent noise/distortion specs, it's designed for high-quality, space-efficient audio applications. Order online today for reliable performance and easy PCB integration.
Order your ROHM BD3491FS sound processor today and enhance your mini audio systems with reliable surround sound, EQ, and volume features.
Frequently Asked Questions
Where can I buy ROHM BD3491FSE2?
You can click on the BUY or RFQ button to purchase BD3491FSE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD3491FSE2?
You can download the BD3491FSE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD3491FSE2?
ROHM
