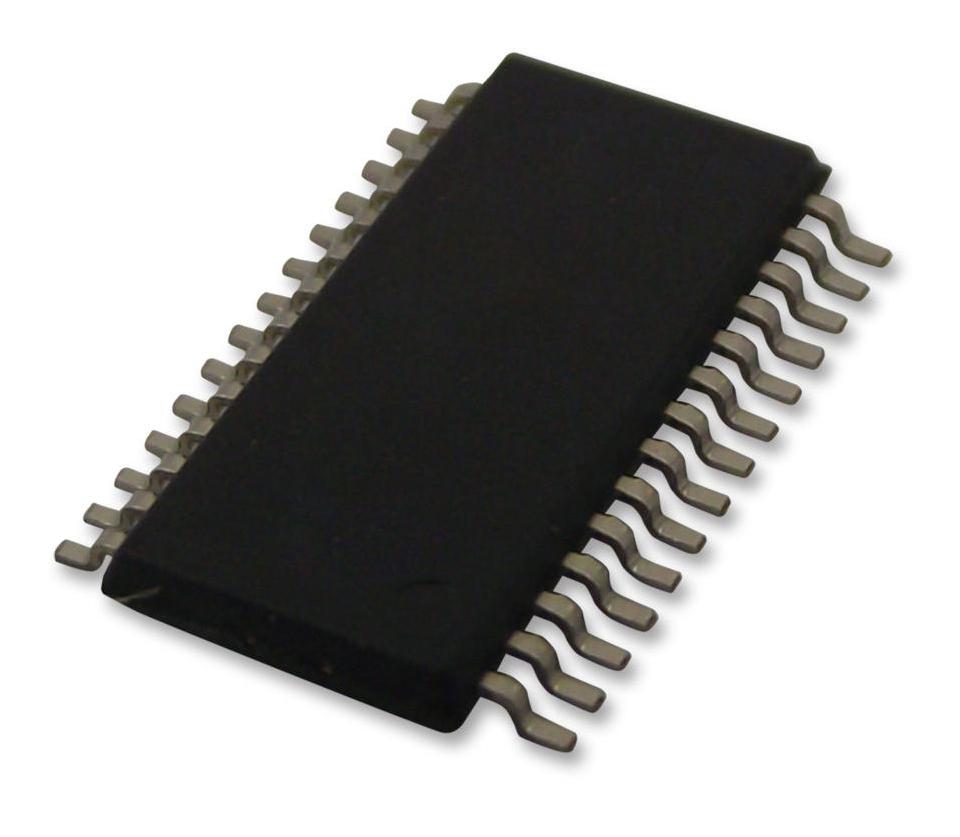

ROHM BD37034FVME2 Audio Processor
The BD37034FV-M is a highly integrated sound processor designed for car audio applications, offering stereo 5-input selection, 3-band equalizer, loudness, fader, mixing, high-voltage output, and noise filtering. It features advanced switch circuits to reduce switching noise during volume, tone, and function changes, ensuring smooth performance. The device supports microcontroller control via I²C bus at 3.3V/5V levels, and is qualified under AEC-Q100 for automotive reliability. Its compact SSOP-B28 package facilitates easy PCB layout, making it ideal for customized car audio systems and other multimedia equipment.
ROHM BD37034FVME2 Audio Processor Specifications:
- Power supply Voltage: VCCL 7.0V to 13.0V, VCCH 8.5V/12V
- Operating Temperature Range: -40°C to +85°C
- Total harmonic distortion: 0.004% (Typ.)
- Maximum input voltage: 2.1Vrms (Typ.)
- Output noise voltage: 6µVrms (Typ.)
- Ripple rejection: -65dB (Typ.)
- Cross-talk between channels: -100dB (Typ.)
- Input impedance: 70kΩ to 130kΩ
- Package: SSOP-B28, Dimensions: 10.00mm x 7.60mm x 1.35mm
- Control Interface: I²C bus at 3.3V/5V, supports advanced switch features
- Built-in anti-aliasing and noise filters, high-voltage output capability
- Product qualifies under automotive Q100 standard
- Supports multiple tone control including bass, middle, treble with gain adjustments
- Includes output level detectors and mute control for system stability
Buy the ROHM BD37034FV-M – Reliable Audio Processor for Industrial Applications
Elevate your car audio system with the ROHM BD37034FV-M, a versatile sound processor offering multiple input sources, advanced equalization, noise reduction, and seamless control via I²C interface. Its compact SSOP-B28 package simplifies PCB design, making it perfect for automotive and industrial audio applications. With automotive-rated reliability (AEC-Q100) and high-quality noise filtering, this device ensures clear sound with minimal switching noise. Order online today to enhance your audio equipment's performance and achieve professional-grade sound quality effortlessly.
Buy ROHM BD37034FV-M now and experience unmatched reliability and performance in car audio and industrial multimedia equipment.
Frequently Asked Questions
Where can I buy ROHM BD37034FVME2?
You can click on the BUY or RFQ button to purchase BD37034FVME2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD37034FVME2?
You can download the BD37034FVME2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD37034FVME2?
ROHM
