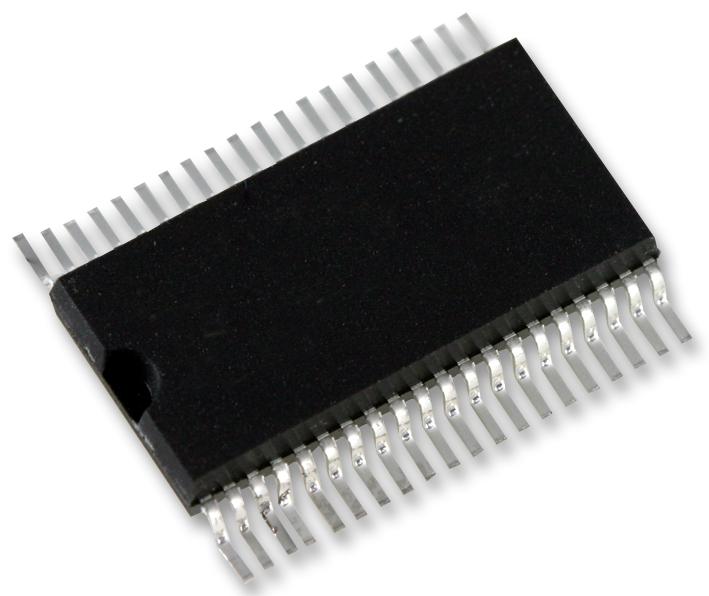

ROHM BD37068FVME2 Car Audio Processor
The BD37068FV-M is a sophisticated car audio sound processor with built-in high-voltage capabilities, a 2-inch post filter, and versatile input selection for enhanced audio clarity. It supports 6 stereo sources, reduces out-of-band noise, and incorporates advanced noise reduction systems, making it ideal for automotive and mini/micro audio equipment. Key features include differential input selection, high harmonic distortion performance of 0.003%, and the ability to output up to 5.2 V rms through high-voltage functions. Its SSOP-B40 package ensures compact design and easy PCB integration, optimizing space and layout efficiency in complex audio systems.
ROHM BD37068FVME2 Car Audio Processor Specifications:
- Package size: SSOP-B40, dimensions approximately 13.95 mm x 20 mm x 4 mm
- Maximum Input Voltage: 2.2V rms
- Output Voltage: Up to 5.2 V rms with High-Voltage function
- Total Harmonic Distortion: 0.003% (Typ), 0.05% (Max)
- Ripple Rejection: -70 dB (Typ)
- Common Mode Rejection Ratio: 55 dB (Min)
- Operating Temperature Range: -40°C to +85°C
- Power Supply Voltage: VCCL=8.5V, VCCH=17V (typ), range 7.0V to 9.5V and 17V ±1.8V respectively
- Input Impedance: 70kΩ to 250kΩ depending on input type
- Built-in differential input selector for single-ended/differential input modes
- Supports I²C bus control at 3.3V/5V levels
- Built-in noise reduction circuits, out-of-band noise filtering, and high-voltage output capability
- Temperature derating curve applicable for thermal management
- Power dissipation: approximately 1.12 W under typical conditions
- Ground isolation amplifier and advanced switch circuits for minimal pop noise
- The device integrates multiple input/output terminals including OUTC, OUTF1, OUTF2, OUTR1, OUTR2, OUTS, and IN terminals
- Includes power reset, power-on sequence control, and extensive external wiring precautions for reliable operation
Buy the ROHM BD37068FV-M – Reliable Car Audio Processing for Industrial Applications
Purchase the ROHM BD37068FV-M online today—engineered for high-quality automotive audio applications with advanced noise reduction, differential inputs, and high-voltage output capabilities. Its compact SSOP-B40 package enables easy PCB layout, saving space in complex audio systems. With extensive control options, including I2C bus compatibility, and robust thermal management features, this sound processor ensures reliable, high-fidelity sound reproduction. Ideal for car, mini, and micro audio equipment, it offers superior performance, durability, and ease of integration for professional and hobbyist audio projects.
Get ROHM BD37068FV-M today—built for precision and long-lasting durability, ideal for automotive and audio system integration.
