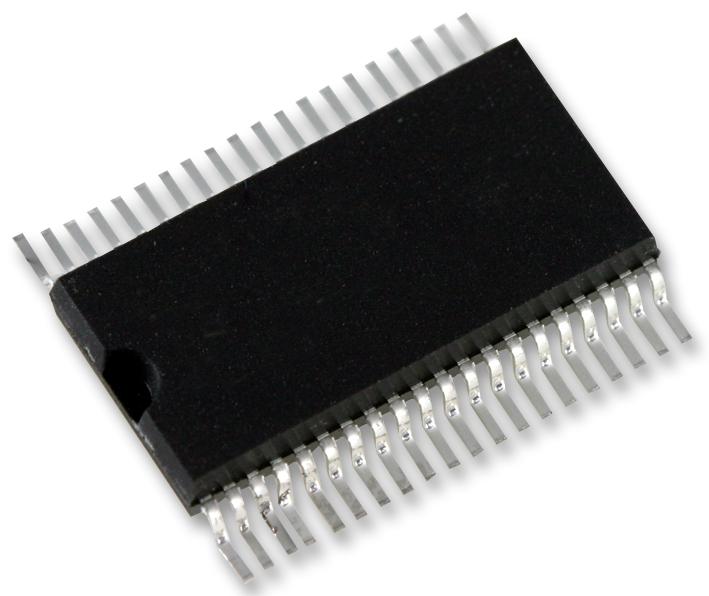

ROHM BD37069FVME2 Audio Processor
The BD37069FV-M is a high-performance car audio sound processor with built-in 6-channel volume control, a 2nd order post filter for low out-of-band noise, and a high-voltage amplifier capable of reaching up to 5.2V RMS maximum output. It features differential input selection, advanced switch noise reduction, and compatibility with I²C bus control. Operating between -40°C to +85°C, it is ideal for automotive audio systems requiring reliable, clear sound processing with minimal harmonic distortion. Its compact SSOP-B40 package facilitates ease of installation and PCB design flexibility.
ROHM BD37069FVME2 Audio Processor Specifications:
- Total Harmonic Distortion: 0.003% (Typ)
- Maximum Input Voltage: 2.1V RMS (Typ)
- Maximum Output Voltage: 5.2V RMS (Typ)
- Total Noise Voltage: 23 µV RMS (Typ)
- Residual Output Noise Voltage: 10.5 µV RMS (Typ)
- Common Mode Rejection Ratio: 55 dB (Min)
- Power Supply Voltage: 9V (VCCH) / 17V (VCCL)
- Operating Temperature Range: -40°C to +85°C
- Package: SSOP-B40 13.60mm x 7.80mm x 2.00mm
- Built-in 2nd Order Post Filter and TDMA Noise Reduction
- Supports I²C Control with 3.3V/5V Compatibility
- High-Voltage Mode output up to 5.2V RMS in Mode2
- Built-in differential input selector, mute function, and high CMRR
Buy the ROHM BD37069FV-M – Reliable Car Audio Signal Processor for Industrial Applications
Enhance your automotive sound system with the ROHM BD37069FV-M audio processor. Featuring six-channel volume control, a 2nd order post filter, and capable of delivering up to 5.2V RMS output, this device ensures crystal-clear sound with minimal harmonic distortion. Its differential input selector, TDMA noise reduction, and I²C control support make installation and operation straightforward. Compactly packaged in SSOP-B40, it's ideal for demanding car audio applications requiring reliability, noise reduction, and high-voltage output stability. Purchase online today for guaranteed quality.
Get ROHM BD37069FV-M today—built for precision and long-lasting durability in automotive audio systems.
