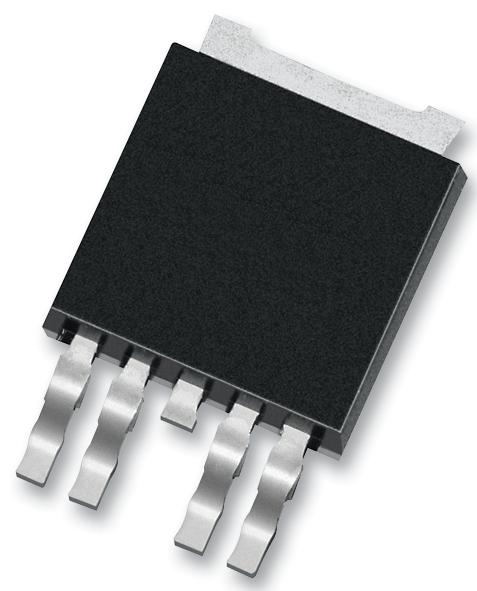

ROHM BD42754FPJCE2 Voltage Regulator
The BD42754FPJ-C is a low-noise, high-efficiency voltage regulator with a maximum output current of 500 mA, designed for automotive and industrial applications. It features a 45 V maximum input voltage, low quiescent current of 75 nA, and built-in reset and overcurrent protection. The device supports programmable reset delay via external capacitor, ensuring stable voltage supply and reliable circuit operation. It is suitable for onboard vehicle devices like ECUs, car stereos, and navigation systems, providing a robust power management solution with thermal shutdown and high ripple rejection.
ROHM BD42754FPJCE2 Voltage Regulator Specifications:
- Input Voltage Range: -0.3 V to +45 V
- Output Current: 500 mA (Max)
- Output Voltage: 5.0 V ±2%
- Reset Detect Voltage: 4.50 V to 4.75 V (Typ 4.62 V)
- Reset Delay Time: Programmable via external capacitor (0.001 μF to 10 μF recommended)
- Quiescent Current: 75 nA (Typ)
- Dropout Voltage: 0.25 V at 300 mA load
- Thermal Shutdown Temperature: 175°C
- Package Types: TO263-5 (FP2), TO252-J5 (FPJ)
- Operating Temperature Range: -40°C to +125°C
- Protection: Overcurrent, thermal shutdown, UVLO
- Capacitors: 0.1 μF on VCC pin; ≥6 μF on output for stability
- Supports low ESR ceramic capacitors
- Suitable for automotive and industrial applications requiring persistent power stability
- Meets automotive standards (AEC-Q100 qualified)
Buy the ROHM BD42754FPJ-C – Reliable Voltage Regulator for Industrial Applications
Purchase the ROHM BD42754FPJ-C voltage regulator today to get a high-efficiency, automotive-grade power management component. Featuring 500 mA output current, low quiescent current, and robust protection features, it ensures reliable operation in vehicle electronics like ECUs, stereos, and navigation systems. With programmable reset delay, thermal shutdown, and overcurrent protection, this regulator provides a stable power source even in demanding environments. Buy online now for fast delivery and secure your project with a trusted power solution.
Order your ROHM BD42754FPJ-C series voltage regulator today and ensure your automotive projects have a stable, efficient power supply with built-in protections.
Frequently Asked Questions
Where can I buy ROHM BD42754FPJCE2?
You can click on the BUY or RFQ button to purchase BD42754FPJCE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD42754FPJCE2?
You can download the BD42754FPJCE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD42754FPJCE2?
ROHM
