ROHM BD62130AEFJE2 DC Motor Driver
The BD62130AEFJ is a high-efficiency single-channel H-bridge motor driver designed for DC brush motors, supporting PWM control up to 100 kHz. It features built-in protection circuits including thermal shutdown, over-current, under-voltage, and over-voltage lockout, ensuring reliable operation. The driver operates with a supply voltage range of 8V to 28V and delivers a rated output current of 3.0A per phase (peak 4.0A). Packaged in a thermally efficient HTSOP-J8 package measuring 4.90 mm x 6.00 mm x 1.00 mm, it is suitable for applications like printers, copiers, and other motor-driven devices, providing stable, protected control for efficient motor operation.
ROHM BD62130AEFJE2 DC Motor Driver Specifications:
- Supply Voltage Range: 8V to 28V
- Rated Output Current: 3.0 A/Phase
- Peak Output Current: 4.0 A/Phase
- Output ON Resistance: 0.35 Q (Typ)
- Package: HTSOP-J8 (4.90 mm x 6.00 mm x 1.00 mm)
- Built-in Thermal Shutdown and Over-current Protection
- Operating Temperature: -25°C to +85°C
- Maximum Junction Temperature: 150°C
- Control Pins: IN1, IN2 for PWM control, TEST for testing
- Protection circuits: UVLO, OVLO, Ghost Supply Prevention, Short Pin Protection
- Designed for DC Brush Motor Drive, includes reverse, forward, brake, stop modes
- Features low ON-Resistance DMOS output and direct PWM control
- Compatible with application circuits in printers, copiers, and other motor control systems

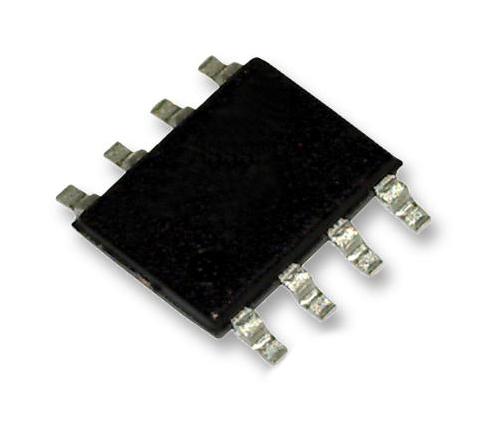

Buy the Buy ROHM BD62130AEFJ Part Number E2 Online
Discover the ROHM BD62130AEFJ, a high-efficiency DC brush motor driver with integrated protection features including thermal shutdown and over-current protection. Designed for PWM control up to 100kHz, it supports supply voltages from 8V to 28V and delivers up to 3.0A per phase peak current. Packaged in a compact HTSOP-J8 form factor, it ensures reliable, protected operation in printers, copiers, and other motor-driven applications. Buy online today to optimize your motor control system with this robust, protection-enabled component.
Buy ROHM BD62130AEFJ now and experience unmatched reliability and high-performance motor control with built-in protection circuits.
Frequently Asked Questions
Where can I buy ROHM BD62130AEFJE2?
You can click on the BUY or RFQ button to purchase BD62130AEFJE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD62130AEFJE2?
You can download the BD62130AEFJE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD62130AEFJE2?
ROHM
