ROHM BD6236FME2 Dual Motor Driver IC
The BD6236FME2 series comprises high-efficiency dual H-bridge driver ICs designed for motor control applications. Operating within a voltage range of 6V to 32V, these ICs support output currents up to 2A and feature built-in protections including UVLO, OVP, TSD, and OCP. Suitable for controlling bipolar motors in various devices, they facilitate PWM-based speed regulation with frequency ranges from 20kHz to 100kHz. Available in SOP8, HSOP25, HSOP-M28, and HRP7 packages, they are ideal for AV, optical drives, and peripheral equipment.
ROHM BD6236FME2 Dual Motor Driver IC Specifications:
- Supply Voltage Range: 6V to 32V
- Maximum Output Current: 2A
- Output ON-Resistance: 1.00 to 1.50Ω
- PWM Input Frequency Range: 20kHz to 100kHz
- Operating Temperature Range: -40°C to +85°C
- Package Types: SOP8, HSOP25, HSOP-M28, HRP7
- Protection Circuits: UVLO, OVP, TSD, OCP
- Power Dissipation: 0.68W to 4.45W depending on package
- Pin configuration varies per package, includes OUT, VCC, GND, VREF, RIN, FIN
- Designed for driving bipolar motors in AV, optical drives, PC peripherals

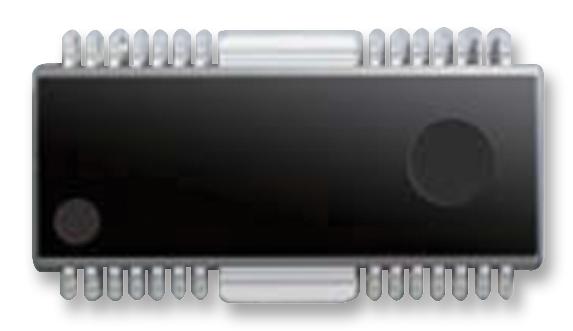

Buy the ROHM Series BD6236FME2 Motor Driver: BD6236FME2
Order the ROHM BD6236FME2 dual motor driver IC online today and enhance your electronic projects with high current handling, wide voltage operation, and built-in protections. This IC supports PWM speed regulation with frequencies from 20kHz to 100kHz, making it perfect for sophisticated motor control in AV equipment, optical drives, and peripherals. Compact in multiple packages like SOP8, HSOP25, HSOP-M28, and HRP7, it offers dependable operation over a broad temperature range from -40°C to +85°C. Get yours now and enjoy seamless integration and robust performance in demanding applications.
Buy ROHM BD6236FME2 motor driver IC now and experience unmatched reliability and performance for your motor control needs, including protections and PWM control.
Frequently Asked Questions
Where can I buy ROHM BD6236FME2?
You can click on the BUY or RFQ button to purchase BD6236FME2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD6236FME2?
You can download the BD6236FME2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD6236FME2?
ROHM
