ROHM BD9486FGE2 White LED Driver
BD9486F is a high-efficiency white LED driver designed for large LCD backlighting applications. It features a boost DC/DC converter with current mode control, adjustable oscillation frequency, and supports analog and PWM dimming. Integrated protections include over-voltage, over-current, and over-boost safeguards. The device operates within a voltage range of 9.0V to 18.0V, with a typical operating current of 2.6mA and temperature tolerance from -40°C to +85°C. Suitable for TV, computer displays, and LCD backlighting, it ensures fail-safe operation with adjustable soft start and fault detection functions.
ROHM BD9486FGE2 White LED Driver Specifications:
- Operating Power Supply Voltage: 9.0V to 18.0V
- Operating Current: 2.6mA (Typ.)
- Oscillation Frequency: 50 to 800 kHz
- Temperature Range: -40°C to +85°C

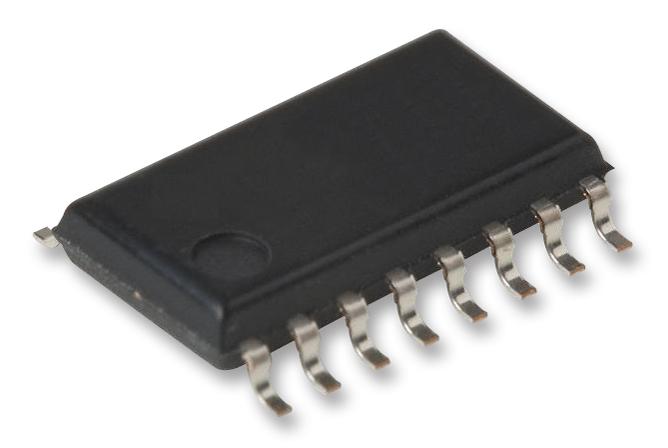

- Package: SOP16, 10.00mm x 6.20mm x 1.71mm
- Pin Pitch: 1.27mm
- Protection Functions: Over-voltage, over-current, over-boost, LED OCP
- VOUT Discharge Function at Shutdown
- Adjustable Soft Start and Oscillation Frequency
- Applications: LCD backlighting, TV, computer display
Buy the ROHM Series LCD Backlight Driver: BD9486F
Purchase the ROHM BD9486F high-efficiency LED driver online today for reliable LCD backlighting in large displays and TVs. Designed for optimal performance, it features adjustable oscillation frequency, multiple protection features, and support for both analog and PWM dimming. Its compact SOP16 package ensures easy integration into your devices. Ensure your product's durability and safety with this robust driver, capable of operating within a voltage range of 9V to 18V, making it ideal for professional display and electronics applications. Buy now and enjoy long-lasting, reliable performance in your lighting solutions.
Get ROHM BD9486F today—built for precision, safety, and long-lasting durability in LCD backlighting applications.
Frequently Asked Questions
Where can I buy ROHM BD9486FGE2?
You can click on the BUY or RFQ button to purchase BD9486FGE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD9486FGE2?
You can download the BD9486FGE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD9486FGE2?
ROHM
