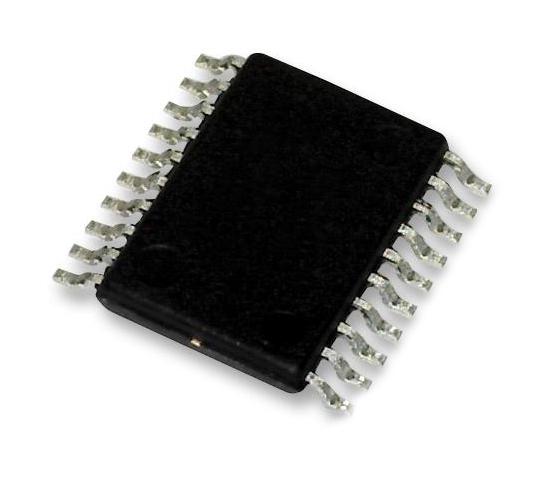

ROHM BD9P135EFVCE2 Automotive Power Module
The BD9P135EFV-C series are high-frequency synchronous buck DC/DC converters integrating POWER MOSFETs, optimized for automotive power supplies and high-reliability applications. Operating from 3.5 V to 40 V input, with adjustable output from 0.8 V to 8.5 V, they feature 2.2 MHz switching frequency, nano pulse control, and advanced protection functions including OCP, SCP, UVLO, TSD, and OVP. Designed for compact, efficient power management, these modules support light load mode, forced PWM, spread spectrum switching, and thermal shutdown, ensuring stable output and robustness in demanding environments.
ROHM BD9P135EFVCE2 Automotive Power Module Specifications:
- Input Voltage Range: 3.5 V to 40 V
- Output Voltage Range: 0.8 V to 8.5 V (adjustable)
- Maximum Output Current: 1 A
- Switching Frequency: 2.2 MHz (Typ)
- Operating Temperature Range: -40 °C to +125 °C
- VOUT Discharge: Available
- Protection Features: OCP, SCP, UVLO, TSD, OVP, Over Current, Thermal Shutdown
- Package: HTSSOP-B20 (Typ: 6.5 mm x 6.4 mm x 1.0 mm)
- Peak Synchronous Mode, Spread Spectrum, Soft Start
- Quiescent Current: 10 μA (Typ), Shutdown Current: 2.1 μA (Typ)
Buy the ROHM BD9P135EFV-C – Reliable Automotive Power Module for Industrial Applications
Purchase the ROHM BD9P135EFV-C series online today for high-efficiency automotive power management. Featuring adjustable output from 0.8 V to 8.5 V, wide input voltage range, and comprehensive protection circuits including OCP, SCP, TSD, UVLO, and OVP, this module ensures reliable operation in harsh environments. With its compact HTSSOP-B20 package and 2.2 MHz switching frequency, it supports light load modes and spread spectrum switching for minimized EMI, making it ideal for automotive and industrial applications requiring high reliability and performance.
Order your ROHM BD9P135EFV-C series today and ensure efficient, robust power supply management with advanced protection features suitable for automotive and industrial environments.
Frequently Asked Questions
Where can I buy ROHM BD9P135EFVCE2?
You can click on the BUY or RFQ button to purchase BD9P135EFVCE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD9P135EFVCE2?
You can download the BD9P135EFVCE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD9P135EFVCE2?
ROHM
