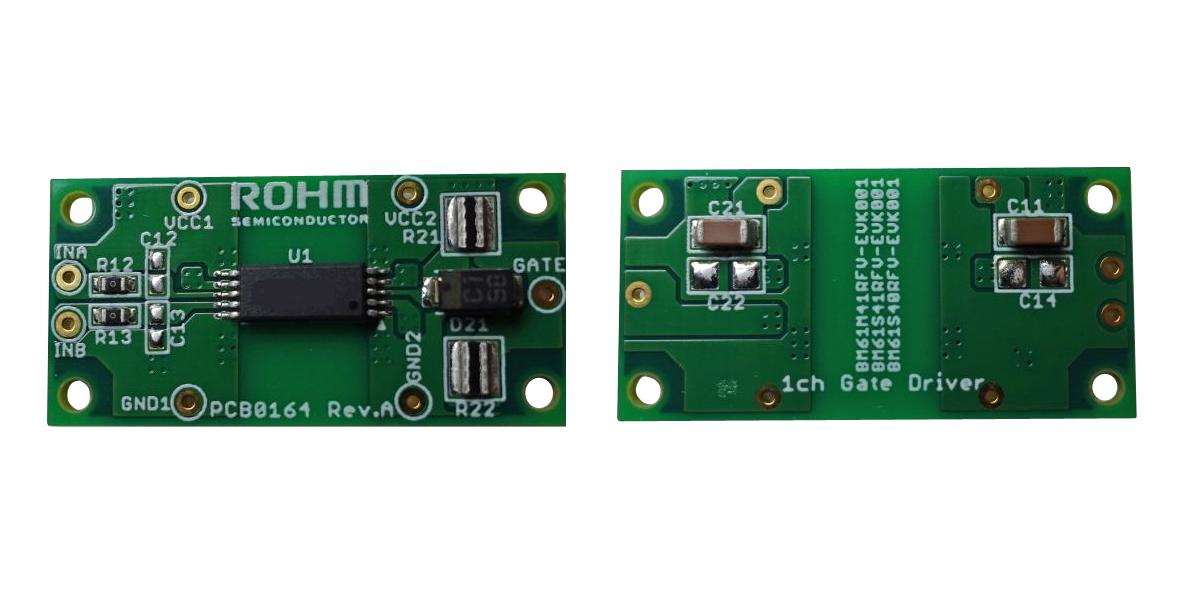

ROHM BM61M41RFVEVK001 Gate Driver Evaluation Board
The BM61M41RFV-EVK001 is an evaluation board designed for gate driver testing and MOSFET power device driving. It features input-side power from 4.5 to 5.5 V and output-side from 9 to 24 V, with integrated protections like UVLO and active Miller clamp. The compact 33 x 16 mm FR-4 PCB supports high-voltage safety measures, making it suitable for research, development, and application testing in power electronics. The board enables efficient evaluation of Rohm’s gate driver family for various high-speed switching applications, ensuring safe operation and design flexibility.
ROHM BM61M41RFVEVK001 Gate Driver Evaluation Board Specifications:
- Input-side Power Supply: 4.5 to 5.5 V
- Output-side Power Supply: 9 to 24 V
- Operating Temperature: -40 to +125 °C
- Board Size: 33 x 16 mm
- Material: FR-4, 4-layer PCB
- Voltage Ratings: VCC1 – 55 V, VCC2 – 30 V
- Input Voltage Limits: INA and INB – -0.3 to +VCC1 or +7.0 V
- Protection Features: UVLO, Miller Clamping
- Maximum Rated Voltage: VCC1 – 55 V, VCC2 – 24 V
- Operating environment suitable for high-voltage applications and safe testing
Buy the Buy ROHM BM61M41RFV Part Number BM61M41RFV-EVK001 Online
Enhance your power electronics development with the ROHM BM61M41RFV-EVK001 Evaluation Board. This compact, high-voltage safety-rated board allows precise testing and evaluation of Rohm's advanced gate driver technology. Designed for research and development, it supports input voltages from 4.5 to 5.5 volts and output voltages from 9 to 24 volts, featuring integrated protections like UVLO and Miller clamps. The 33 x 16 mm FR-4 PCB ensures ease of integration and safe handling, enabling engineers to optimize high-speed switching performance with confidence.
Buy ROHM BM61M41RFV-EVK001 now and experience unmatched reliability and high-performance gate driver evaluation for your power electronics projects.
