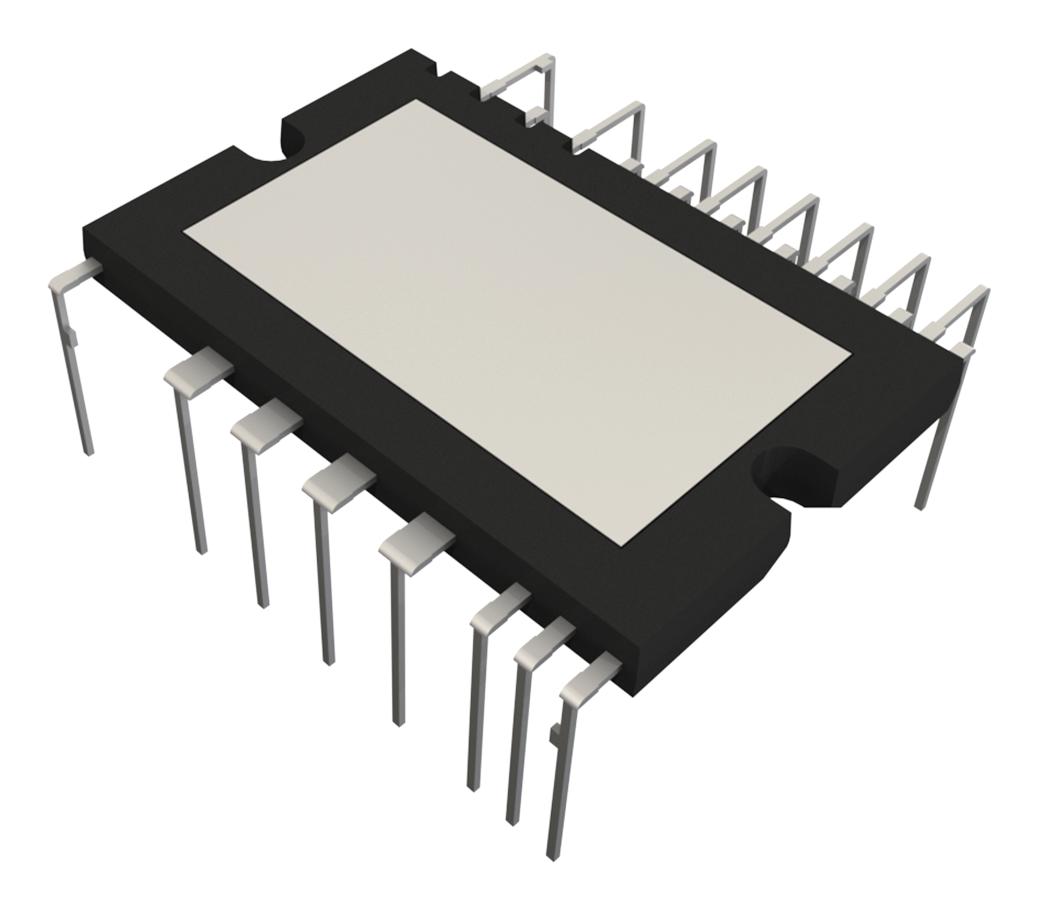

ROHM BM63967SVC Motor Control Module
The BM63967S-VC is a high-performance 600V IGBT intelligent power module designed for motor control and inverter applications. It features integrated gate drivers, bootstrap diodes, and flywheel diodes, enabling high-speed switching with low emissions. The IPM supports 3-phase DC/AC inverter configurations, delivering up to 30A with optimal thermal characteristics and built-in protections like UVLO, SCP, and temperature monitoring. Its compact case measures 38.0mm x 24.0mm x 3.5mm, suitable for industrial automation, electric motor drives, and washing machine applications. The module ensures reliable operation with a junction temperature maximum of 150°C and case temperature range of -25°C to +100°C.
ROHM BM63967SVC Motor Control Module Specifications:
- Collector-Emitter Voltage Vces: 600 V
- Collector Current pe: 30 A
- Peak Collector Current Ipc: 460 A (less than 1ms)
- Collector Power Dissipation Po: 59 W
- Junction Temperature Tjmax: 150°C
- Case Temperature Tc: -25°C to +100°C
- Control Power Supply Vec: 20 V
- Bootstrap Diode Reverse Voltage Vap: 600 V
- Total system isolation voltage Viso: 1500 Vrms
- Module dimensions: 38.0mm x 24.0mm x 3.5mm
- Switching times: Turn on delay 0.50-1.50μs, Turn off delay 1.40-2.40μs
- Operating temperature range: -25°C to +125°C
- Protection features: UVLO, SCP, thermal shutdown
- Package type: HSDIP25 long pin and staggered types
Buy the ROHM BM63967S-VC – Reliable Motor Control for Industrial Applications
Order the ROHM BM63967S-VC power module online today for dependable motor control solutions. Designed for efficient inverter operation, it includes integrated gate drivers, bootstrap diodes, and protection features like UVLO and SCP. Compact and suitable for industrial applications such as washing machines, fans, and high-speed motor drives, this module ensures precision, thermal stability, and long-lasting performance. With easy online purchase, you can upgrade your manufacturing or automation system quickly and confidently, benefiting from ROHM’s proven reliability and advanced technology.
Get ROHM BM63967S-VC today—built for high-speed inverter drives and robust motor control in industrial environments.
Frequently Asked Questions
Where can I buy ROHM BM63967SVC?
You can click on the BUY or RFQ button to purchase BM63967SVC from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63967SVC?
You can download the BM63967SVC datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63967SVC?
ROHM
