ROHM BU7244YFVCE2 Low Power Amplifier
The BU7244YFV-C is a low-power, rail-to-rail CMOS operational amplifier designed for automotive and battery-powered sensor applications. It features a wide operating temperature range from -40°C to +125°C, low supply current of 360 μA, and extremely low input bias and offset currents of 1 pA and 12 mV maximum offset voltage. The device operates on a dual or single supply voltage, providing high input impedance, low output impedance, and stable performance with a simple pin configuration. Its robust design meets automotive standards, ensuring reliable operation in harsh environments.
ROHM BU7244YFVCE2 Low Power Amplifier Specifications:
- Operating Supply Voltage Range: Single 1.8V to 5.5V, Dual 0.90V to 2.75V
- Operating Temperature Range: -40°C to +125°C
- Input Bias Current: 1 pA (Typ), Input Offset Voltage: Max 12 mV at -40°C to +125°C
- Supply Current: 360 μA (Typ)

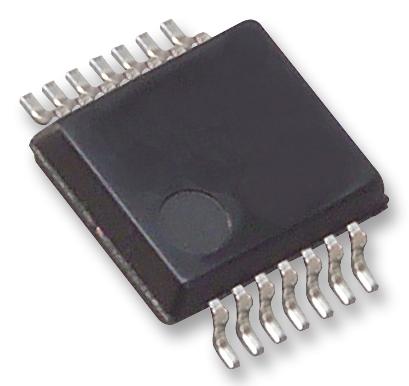

- Package: SSOP-B14, Dimensions: 5.00 mm x 6.40 mm x 1.35 mm
- Input/Output Rail-to-Rail Compatible
- Maximum Differential Input Voltage: Vss - 0.3V to Vop + 0.3V
- Maximum Junction Temperature: 150°C
- Power Dissipation: 0.87 W
- Common-Mode Input Voltage Range: Vss - 0.3V to Vp + 0.3V
- Certifications: Automotive-qualified (AEC-Q100)
Buy the Buy ROHM BU7244YFV-C Part Number Online
Order the ROHM BU7244YFV-C online today to benefit from a high-performance, low-power CMOS operational amplifier suitable for automotive and sensor applications. Featuring a wide temperature range from -40°C to +125°C, extremely low input bias and offset currents of just 1 pA and 12 mV maximum, and a supply voltage range compatible with both single and dual supplies, this device guarantees stability, reliability, and efficient operation in harsh environments. Its compact SSOP-B14 package simplifies integration into various electronic systems, ensuring high durability and consistent performance across applications.
Buy ROHM BU7244YFV-C low-power op-amp now and experience reliable, automotive-grade performance in sensor and battery-powered applications.
Frequently Asked Questions
Where can I buy ROHM BU7244YFVCE2?
You can click on the BUY or RFQ button to purchase BU7244YFVCE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BU7244YFVCE2?
You can download the BU7244YFVCE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BU7244YFVCE2?
ROHM
