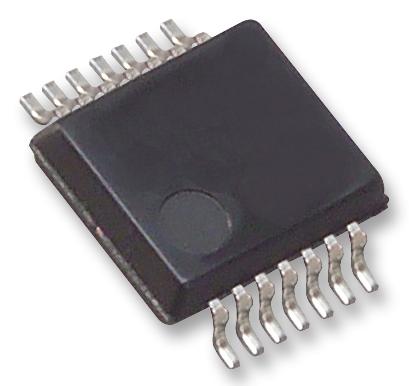

ROHM BU7294FE2 Operational Amplifier
The BU7294FE2 is a low supply voltage CMOS operational amplifier designed for precision analog applications. It features input/output full swing capabilities, a high slew rate of 3.0V/μs, and very low input bias and offset currents of only 1pA. Its wide temperature range from -40°C to +105°C ensures reliable performance in industrial, consumer, and instrumentation systems. The compact package options include SSOP5, SOP14, and SSOP-B14, enabling versatile integration into various electronic circuits requiring high speed, low power, and high gain characteristics.
ROHM BU7294FE2 Operational Amplifier Specifications:
- Supply Voltage: +2.4V to +5.5V
- Input bias current: 1pA (Typ)
- Input offset current: 1pA (Typ)
- Slew rate: 3.0V/μs
- Gain bandwidth: 28 MHz
- Unity gain frequency: 2.8 MHz
- Power supply rejection ratio: 45 to 80 dB
- Common-mode rejection ratio: 40 to 60 dB
- Maximum output voltage: VDD-0.1V (High), VSS+0.1V (Low)
- Package options: SSOP5, SOP14, SSOP-B14
- Operating temperature: -40°C to +105°C depending on model
- Dimensions: SSOP5: 2.90mm x 2.80mm x 1.25mm, SOP14: 8.70mm x 6.20mm x 1.71mm, SSOP-B14: 5.00mm x 6.40mm x 1.35mm
Buy the ROHM BU7294FE2 – Reliable Low Voltage CMOS Operational Amplifier for Industrial Applications
Enhance your electronic projects with the ROHM BU7294FE2 operational amplifier. Its ultra-low bias current, high slew rate, and wide temperature range make it ideal for industrial, consumer, and instrumentation applications. Compact packages like SSOP5, SOP14, and SSOP-B14 allow versatile integration into various circuit designs. Designed for reliability, it ensures high accuracy, minimal distortion, and stable operation under demanding conditions. Purchase online today to upgrade your analog systems with this efficient, high-performance CMOS op-amp, ensuring precision and durability in your solutions.
Get ROHM BU7294FE2 today—built for precision, high speed, and long-lasting durability in your analog circuitry.
Frequently Asked Questions
Where can I buy ROHM BU7294FE2?
You can click on the BUY or RFQ button to purchase BU7294FE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BU7294FE2?
You can download the BU7294FE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BU7294FE2?
ROHM
