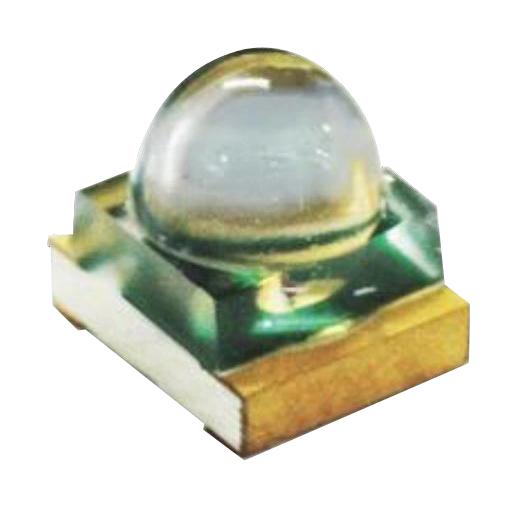

ROHM CSL0701UT5 Surface Mount LED
The CSLO701x series features compact, low-profile LEDs with lens, suitable for both top-view and side-view applications. Available in various colors such as red and orange, these LEDs operate at a maximum of 120 mW power with a forward current of 50 mA. They are designed for surface mounting with specialized soldering profiles and reflow conditions. Ideal for indicator and illumination purposes, these reliable LEDs offer consistent optical performance, withstand humidity and temperature variations, and are shipped moisture-proof. Suitable for varied electronic device applications requiring durable and efficient light sources.
ROHM CSL0701UT5 Surface Mount LED Specifications:
- Package Type: 2.9 x 2.4 mm (t=3.1 mm)
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Max Power: 120 mW
- Forward current: 50 mA
- Forward voltage: Typical 2.0V to 3.2V depending on color
- Dominant Wavelength: 610 nm (Red), 590 nm (Orange)
- Recommended solder pattern with tolerance +0.2 mm
- Reflow profile with peak temperature of 250°C, controlled heating rate
- Viewing angles: Approximately 120 degrees
Buy the ROHM Series CSLO701 LED: CSL0701UT5
Enhance your electronic projects with ROHM's CSLO701UT5 surface mount LEDs. These compact, durable LEDs deliver bright, reliable illumination for indicator lights, displays, and illumination in various electronic devices. With a proven design for precise mounting, excellent optical performance, and environmental resilience, they are perfect for industrial, automotive, and consumer electronics. Purchase online today to ensure high-quality, long-lasting lighting components in your next project. Experience the reliability and efficiency of ROHM LEDs with seamless online ordering.
Get ROHM CSLO701UT5 LEDs today—built for precision, high efficiency, and long-lasting durability in electronic illumination applications.
Frequently Asked Questions
Where can I buy ROHM CSL0701UT5?
You can click on the BUY or RFQ button to purchase CSL0701UT5 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part CSL0701UT5?
You can download the CSL0701UT5 datasheet or visit the ROHM website for support.
Who is the manufacturer of CSL0701UT5?
ROHM
