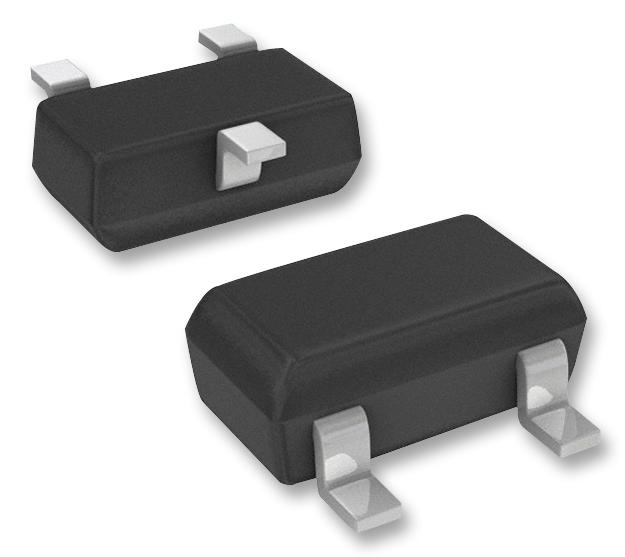

ROHM DA204KFHT146 Switching Diode
The DA204KFH is a high-reliability, small mold type switching diode suitable for industrial applications. It features a maximum reverse voltage of -20V, forward current of 200mA, and a peak surge current of 300mA. Designed for general switching, its epitaxial planar structure ensures consistent performance. The diode is packaged in an embossed tape reel (180mm), with dimensions and specifications optimized for surface-mount assembly on circuit boards, making it ideal for compact electronic designs requiring reliable switching operation.
ROHM DA204KFHT146 Switching Diode Specifications:
- Reverse voltage: -20V
- Repetitive peak reverse voltage: -20V
- Average rectified forward current: 100mA
- Forward current: 200mA
- Peak forward surge current: 300mA
- Power dissipation: 200mW
- Junction temperature: -55°C to 150°C
- Forward voltage (at 10mA): Max 1.0V
- Reverse current (at 15V): Max 0.1pA
- Capacitance between terminals: Max 4.0pF at 6V, 1.0MHz
- Package: SMD3, embossed tape reel, 180mm reel, 8mm width
- Dimensions (approximate): Length 3.5-3.7mm, width 2.9-3.1mm, height 1.5-2.5mm
- Structure: Epitaxial planar type
- Marking: K
- Operating storage temperature: -55°C to 150°C
Buy the ROHM DA204KFH – Reliable Switching Diode for Industrial Applications
Purchase the ROHM DA204KFH switching diode online today for dependable switching performance in industrial electronics. Its small footprint and high reliability make it ideal for compact circuit designs. Designed to handle up to 200mA forward current with a maximum reverse voltage of 20V, it guarantees dependable operation in demanding applications. With a peak surge current of 300mA and a power dissipation of 200mW, this SMD package ensures easy mounting and long-term durability. Make your electronics more reliable by choosing direct online ordering today.
Order your ROHM DA204KFH high-reliability switching diode today and ensure robust performance in your industrial circuits.
Frequently Asked Questions
Where can I buy ROHM DA204KFHT146?
You can click on the BUY or RFQ button to purchase DA204KFHT146 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part DA204KFHT146?
You can download the DA204KFHT146 datasheet or visit the ROHM website for support.
Who is the manufacturer of DA204KFHT146?
ROHM
