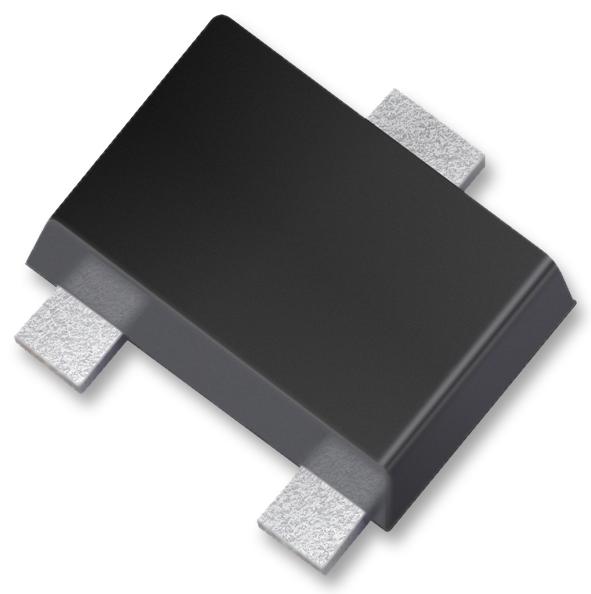

ROHM DTC123JMFHAT2L Digital Transistor
The DTC123JM FHA is a compact, high-voltage NPN digital transistor featuring built-in bias resistors, enabling simple inverter and interface circuit designs without external biasing components. It supports up to 50V collector-emitter voltage and 100mA collector current, making it suitable for digital switching applications. Its small SOT-723 package ensures ease of mounting in space-constrained circuits. The device is RoHS compliant, with robust characteristics including a transition frequency of 250 MHz and low output voltage drop, ideal for driver and inverter functions in industrial electronics.
ROHM DTC123JMFHAT2L Digital Transistor Specifications:
- Package: SOT-723 (SC-105AA)
- Collector-Emitter Voltage: 50V
- Collector Current: 100mA
- Input Voltage Range: -5V to 12V
- Power Dissipation: 150mW
- Junction Temperature: -55°C to +150°C
- Transition Frequency: 250MHz
- DC Current Gain (hFE): 80 to 300
- Output Voltage Drop (Vo): 0.3V at 5mA
- Input Resistance: 154kΩ to 286kΩ
- Resistance Ratio R/R₁: 17 to 26
- Built-in bias resistors facilitate inverter and driver designs
- Compliance with AEC-Q101 standards
- Storage Temperature Range: -55°C to +150°C
Buy the Buy ROHM DTC123JM FHA Part Number DTC123JMFHAT2L Online
Purchase the ROHM DTC123JM FHA digital transistor online today for reliable high-voltage switching in inverter, interface, and driver circuits. Its built-in bias resistors eliminate the need for external components, simplifying design and assembly. With a maximum collector-emitter voltage of 50V and collector current of 100mA, it ensures high performance in compact SOT-723 packaging. Ideal for industrial electronics, its robust features include low voltage drop, high transition frequency, and compliance with RoHS standards. Upgrade your circuits with ease—order now for fast delivery and quality assurance.
Get ROHM DTC123JM FHA today—built for high-voltage digital switching and easy circuit design with integrated bias resistors.
Frequently Asked Questions
Where can I buy ROHM DTC123JMFHAT2L?
You can click on the BUY or RFQ button to purchase DTC123JMFHAT2L from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part DTC123JMFHAT2L?
You can download the DTC123JMFHAT2L datasheet or visit the ROHM website for support.
Who is the manufacturer of DTC123JMFHAT2L?
ROHM
