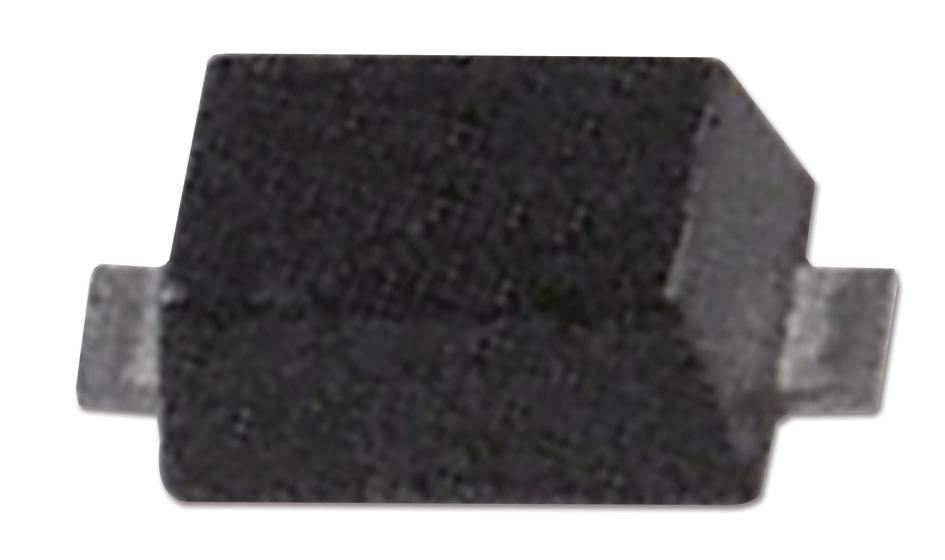

ROHM EDZVFHT2R11B Zener Diode
The EDZVFH series is a high-reliability, AEC-Q101 qualified Zener diode designed for precise voltage regulation in electronic circuits. Features include small mold types for compact applications, with minimum and maximum dimensions carefully specified for easy integration. These Zener diodes operate with maximum power dissipation of 150 mW and junction temperature of 150°C, making them suitable for demanding environments. Ideal for voltage regulation, overload protection, and voltage reference in automotive, industrial, and consumer electronics. The series offers a broad voltage range from approximately 2.02V to 33V, ensuring versatility in various voltage regulation needs.
ROHM EDZVFHT2R11B Zener Diode Specifications:
- Power Dissipation: 150 mW
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to 150°C
- Package: SOD523 SC-79
- Tape Width: 8 mm
- Reel Size: 180 mm
- Taping Code: TE61
- Electrical Characteristics: Zener voltage from 2.02V to 33V, maximum reverse current 60mA, dynamic impedance varies by model, test voltage and current specified per part number
- Physical Dimensions (Min-Max): A: 0.50-0.70 mm, B: 0.25-0.35 mm, C: 0.07-0.17 mm, D: 0.75-0.85 mm, E: 1.15-1.25 mm, He: 1.60-1.70 mm
- Operating Temperature Range: -55°C to 150°C
- Compliance: AEC-Q101 qualified for automotive reliability
Buy the Buy ROHM Zener Diode Series EDZVFH Part Number EQZVFH11B Online
Secure your automotive and industrial electronic designs by purchasing the ROHM EDZVFH series Zener diodes online. These high-reliability, AEC-Q101 qualified components provide precise voltage regulation and overload protection, essential for demanding applications. Available in a compact SOD523 package, with broad voltage options from 2.02V to 33V, they ensure dependable operation with maximum power dissipation of 150 mW and junction temperature of 150°C. Buy now to enhance your project’s stability and safety with premium quality components, fast shipping, and excellent customer support.
Order your ROHM Series EDZVFH11B precision Zener diode today and ensure reliable voltage regulation for automotive and industrial projects.
Frequently Asked Questions
Where can I buy ROHM EDZVFHT2R11B?
You can click on the BUY or RFQ button to purchase EDZVFHT2R11B from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part EDZVFHT2R11B?
You can download the EDZVFHT2R11B datasheet or visit the ROHM website for support.
Who is the manufacturer of EDZVFHT2R11B?
ROHM
