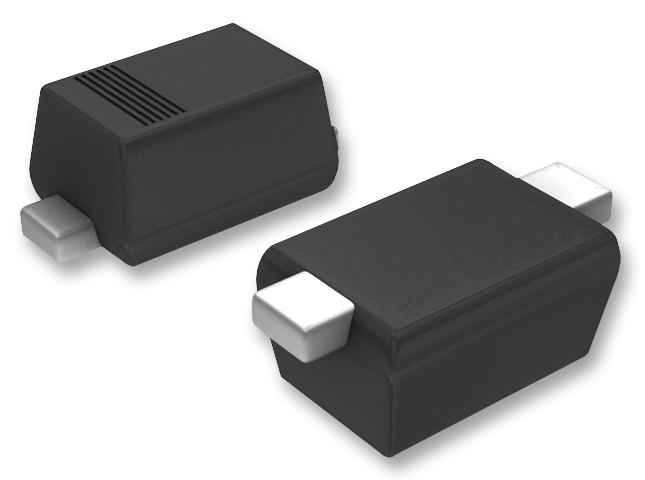

ROHM EDZVT2R36B Voltage Regulator Diode
The EDZV Series is a compact, high-reliability Zener diode designed for voltage regulation applications in electronic circuits. Featuring a small mold type package for easy surface mounting, it offers a maximum power dissipation of 150 mW and junction temperature of 150°C. The series covers a wide Zener voltage range from approximately 2.02V to 36.87V, with low dynamic impedance and stable reverse voltage performance. Ideal for precise voltage regulation in industrial, consumer, and communication equipment, this diode ensures durability and consistent operation under various environmental conditions.
ROHM EDZVT2R36B Voltage Regulator Diode Specifications:
- Power Dissipation: 150 mW
- Junction Temperature: 150°C
- Storage Temperature: -55°C to 150°C
- Zener Voltage Range: 2.02V to 36.87V
- Voltage Regulation: Typical 2.02V to 36.87V
- Dynamic Impedance: 5.0Ω to 250Ω depending on model
- Reverse Current: 0.5μA to 19μA at test voltage
- Package Type: SOD523 SC-79, embossed tape reel, tape width 8mm
- Marking Code: Vz values indicated on each marking (e.g., 62, 72, 85)
- Test Voltage: 40ms test time, Vz stability ensured
- Temperature Coefficient: ~0.12%/°C, ensuring voltage stability
- Operating Temperature: -55°C to +150°C, suitable for various environments
- Maximum Reverse Voltage: Corresponds to typical Zener voltage range
- Application: Voltage regulation, reference, and circuit protection
- Package Dimensions: Length approximately 0.5-0.7mm, width 0.25-0.35mm, height 0.75-0.85mm
Buy the ROHM Series EDZV Zener Diode: EDZVT2R36B
Order ROHM EDZVT2R36B Zener diode online now to ensure stable voltage regulation in your electronic projects. Compact and reliable, this diode supports high-reliability applications with a maximum power dissipation of 150mW and voltage range from 2.02V to 36.87V. Its small, surface-mount package simplifies assembly, making it ideal for industrial, consumer, or communication devices. Enhance circuit stability and protection with this durable, high-performance Zener diode. Purchase today for quick delivery and quality assurance for your electronic applications.
Get ROHM EDZVT2R36B today—built for precise voltage regulation and long-lasting durability.
Frequently Asked Questions
Where can I buy ROHM EDZVT2R36B?
You can click on the BUY or RFQ button to purchase EDZVT2R36B from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part EDZVT2R36B?
You can download the EDZVT2R36B datasheet or visit the ROHM website for support.
Who is the manufacturer of EDZVT2R36B?
ROHM
