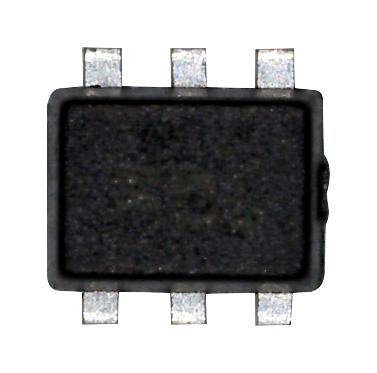

ROHM EMD22FHAT2R Dual Digital Transistor
The EMD22 FHA is a dual digital transistor designed for industrial applications, offering reliable switching and signal interfacing. It features NPN and PNP transistors in EMT packages, suitable for inverter, interface, and driver circuits. The component is AEC-Q101 qualified, ensuring automotive-grade durability. Its compact SOT-563 outline allows easy mounting with automatic EMT3 machines. The device operates within specified voltage, current, and temperature ratings, making it ideal for precision control and automation systems requiring low power dissipation and high reliability in various environments.
ROHM EMD22FHAT2R Dual Digital Transistor Specifications:
- Package: SOT-563, EMT6
- Package size: 1.6x1.6 mm, Taping: T2R 180 mm, Tape width: 8 mm, Reel size: 8000 pcs
- Supply voltage: 50 V (collector), -50 V (emitter/base)
- Input voltage: -5 to 30 V for NPN, -30 to 5 V for PNP
- Maximum output/current: 100 mA
- Power dissipation: 150 mW per element
- Junction temperature: 150°C
- Storage temperature: -55°C to +150°C
- Transition frequency: up to 250 MHz
- Electrical characteristics: DC current gain (80 typ.), Input resistance: 3.29–6.11 kΩ, Resistance ratio: 8–12
- Operating temperature ranges: -55°C to +150°C
- Designed for automatic mounting in EMT machines, suited for inverter and interface circuits with low power consumption.
Buy the ROHM EMD22 FHA – Reliable Digital Transistor for Industrial Applications
Purchase the ROHM EMD22 FHA dual digital transistor online to ensure high-reliability performance in inverter, interface, and driver applications. This compact device features NPN and PNP transistors in EMT packages, designed for automatic SMT mounting, ideal for industrial automation, automotive, and control systems. With specifications across voltage, current, and temperature ranges, it guarantees stable operation in demanding environments. Order now to benefit from fast shipping, OEM quality standards, and technical support, making your projects more efficient and reliable.
Get ROHM EMD22 FHA today—built for precision and long-lasting durability in industrial control and automation systems.
Frequently Asked Questions
Where can I buy ROHM EMD22FHAT2R?
You can click on the BUY or RFQ button to purchase EMD22FHAT2R from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part EMD22FHAT2R?
You can download the EMD22FHAT2R datasheet or visit the ROHM website for support.
Who is the manufacturer of EMD22FHAT2R?
ROHM
