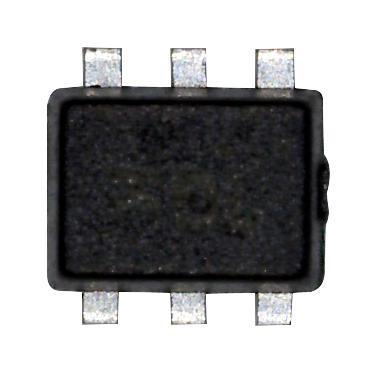

ROHM EMH10FHAT2R Dual Digital Transistor
The EMH10 FHA is a dual digital transistor suitable for general purpose applications such as inverters, interfaces, and drivers. It features two independent DTC123J chips in EMT6 package, provides high reliability with AEC-Q101 qualification, and supports automatic mounting with EMT3 machines. This compact component offers low power dissipation, high-speed switching, and robust electrical characteristics suitable for diverse electronic circuits, ensuring cost-effective and interference-free operation in modern electronic systems.
ROHM EMH10FHAT2R Dual Digital Transistor Specifications:
- Package: EMT6
- Component: Two DTC123J chips in EMT6 package
- Mounting: Compatible with EMT3 automatic mounting machines
- Voltage: Supply voltage 50 V, Input voltage -5 to 12 V
- Output Current: 100 mA, Collector Current 100 mA
- Power Dissipation: 150 mW total
- Junction Temperature: Up to 150°C
- Storage Temperature: -55°C to +150°C
- Input Voltage V_in: 0 to 12 V, V_in (ON): 5 V
- Output Voltage V_out: 0.3 V at 5 mA load
- DC Current Gain G_: Min 80, typical specified
- Resistance: 1.54 kΩ to 2.86 kΩ, Resistance ratio RJR: 17 to 26
- Transition Frequency ft: Approx. 250 MHz
- Package Dimensions: Length 1.50-1.70 mm, Width 0.45-0.55 mm, Height 1.10-1.30 mm
- Temperature Range: Storage -55°C to +150°C, Operating up to 150°C
Buy the Buy ROHM EMH10 FHA Part Number EMH10FHAT2R Online
Purchase the dual digital transistor now from our online store to ensure top-grade quality, reliable operation in inverter, interface, and driver applications. This AEC-Q101-qualified component offers high speed, low power dissipation, and independent transistor elements that eliminate interference, making it suitable for modern electronic circuit design. Its EMT6 package supports easy mounting with automatic machines, reducing costs and space requirements. Enhance your project’s reliability and efficiency by ordering this high-performance transistor today for seamless integration and long-term operation.
Buy ROHM EMH10 FHA now and experience reliable dual transistor performance with easy automatic mounting.
Frequently Asked Questions
Where can I buy ROHM EMH10FHAT2R?
You can click on the BUY or RFQ button to purchase EMH10FHAT2R from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part EMH10FHAT2R?
You can download the EMH10FHAT2R datasheet or visit the ROHM website for support.
Who is the manufacturer of EMH10FHAT2R?
ROHM
