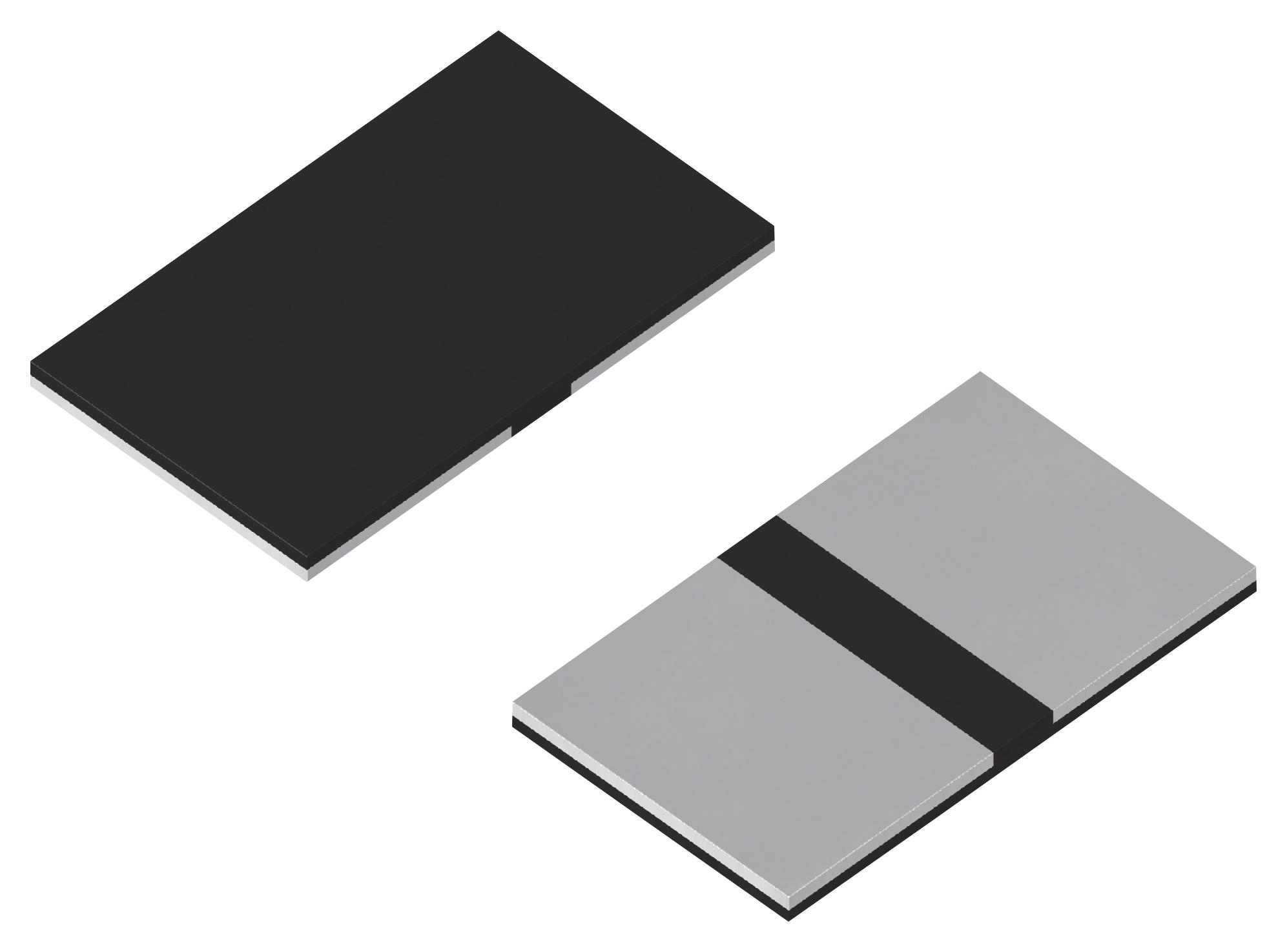

ROHM GMR100HTBFIR022 Low Ohmic Power Resistor
High power low ohmic chip shunt resistor ideal for industrial and automotive applications, featuring high heat dissipation, excellent TCR characteristics, and a resistance range from 5mΩ to 220mΩ. Suitable for precise current measurement and power management, these resistors deliver reliable performance under demanding conditions. They are rated at 3W to 5W power dissipation, with dimensions 6.4 x 3.2 mm, and are compliant with IEC60115-8 standards. This series provides options for various resistance values and mounting configurations, ensuring robust circuit protection and accurate readings.
ROHM GMR100HTBFIR022 Low Ohmic Power Resistor Specifications:
- Size: 6.4 x 3.2 mm (0.25 x 0.13 inch)
- Rated Power: 3W to 5W
- Resistance Range: 5mΩ to 220mΩ
- Resistance Tolerance: ±1%
- Resistance Coefficient: ppm/°C not specified
- Operating Temperature: -55°C to +170°C
- Derating Temperature: load derated above 110°C terminal temperature
- Material: High power chip resistor with low ohmic values
- Standards: IEC60115-8, JISC 5201-8
- Packaging: Embossed tape; reel dimensions provided
- Compliance: RoHS, UL listed options available
Buy the ROHM GMR100 U– Reliable Low Ohmic Power Resistors for Industrial Applications
Purchase the ROHM GMR100 series low ohmic power resistors online now for dependable performance in industrial and automotive circuits. These resistors feature high heat dissipation, precise resistance values ranging from 5mΩ to 220mΩ, and power ratings between 3W and 5W, making them perfect for demanding applications. Their robust design ensures longevity and stability, with compliance to international standards. Get yours today for easy integration into your system, backed by guaranteed quality and fast delivery, to keep your projects running smoothly and efficiently.
Order your ROHM GMR100 series high power low ohmic shunt resistor today and ensure reliable current measurement in demanding industrial and automotive projects.
Frequently Asked Questions
Where can I buy ROHM GMR100HTBFIR022?
You can click on the BUY or RFQ button to purchase GMR100HTBFIR022 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part GMR100HTBFIR022?
You can download the GMR100HTBFIR022 datasheet or visit the ROHM website for support.
Who is the manufacturer of GMR100HTBFIR022?
ROHM
