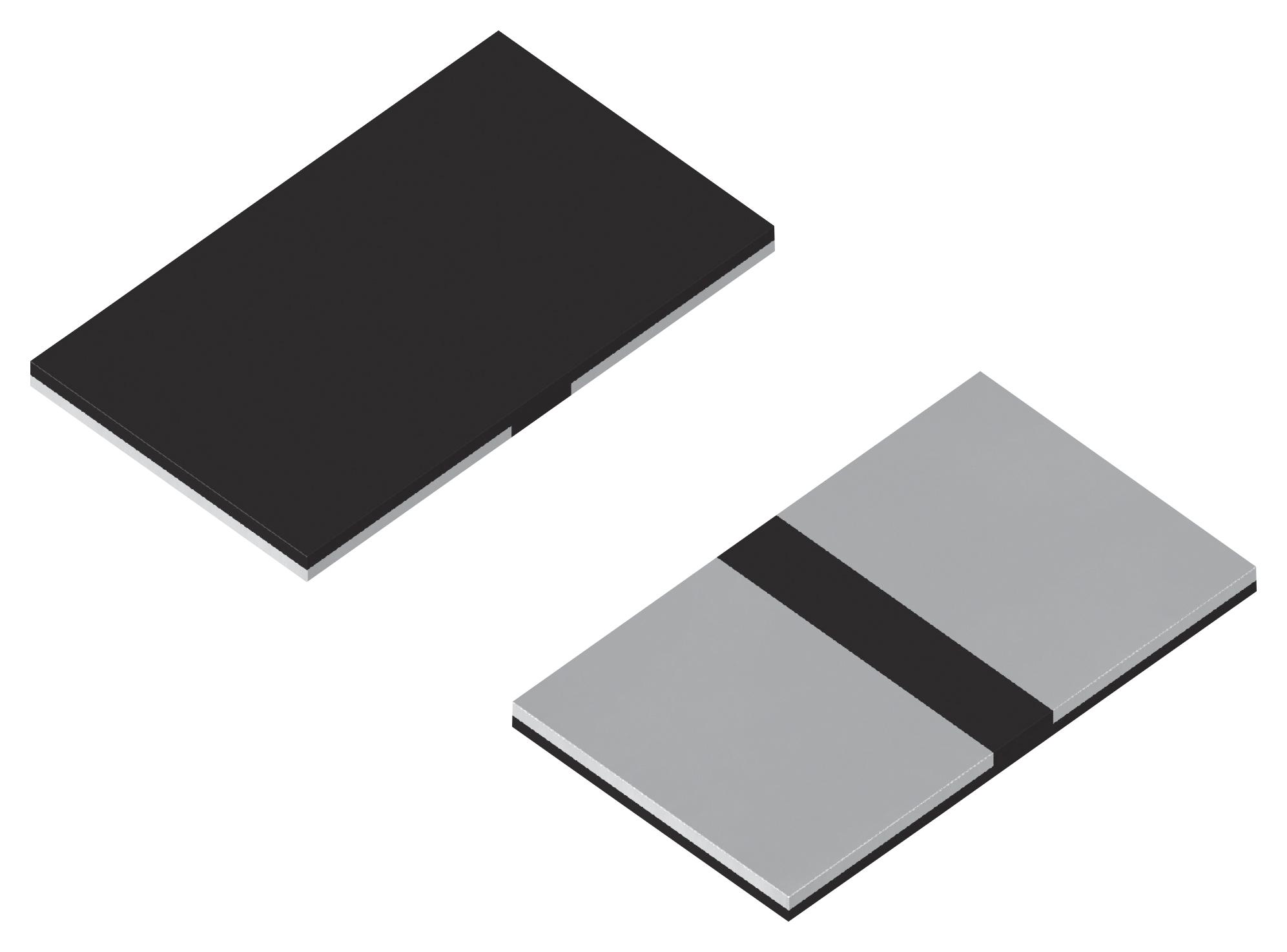

ROHM GMR100HTBFMR033 Low Ohmic Resistor
The GMR series low ohmic chip shunt resistors are high power components rated from 3W to 5W, designed for precise current measurement applications. They feature excellent heat dissipation, low resistance values ranging from 5mΩ to 220mΩ, and high-temperature tolerance with stable characteristics. Suitable for automotive and industrial equipment, these resistors comply with IEC60115-8 and JISC 5201-8 standards. Made with reliable copper alloy, they provide minimal resistance variation over temperature, ensuring accurate and stable performance in demanding environments.
ROHM GMR100HTBFMR033 Low Ohmic Resistor Specifications:
- Power Rating: 3W to 5W
- Resistance Range: 5mΩ to 220mΩ
- Size: 10mm x 3.2mm (0.39 x 0.13 inch)
- Temperature Coefficient: High stability, specific ppm/°C not provided
- Maximum Operating Voltage: Not specified, but implied suitable for high current applications
- Material: Copper alloy, tin-plated
- Standards Compliance: IEC60115-8, JISC 5201-8
- Rated temperature: up to 170°C
- Derating Temperature: Load decreases beyond 110°C terminal temperature
- Packaging: Embossed tape, reel options available
Buy the Rohm Series GMR High Power Low Ohmic Chip Resistors: GMR100HTBFMR033
Discover the reliable GMR series low ohmic chip resistors, rated from 3W to 5W, with outstanding heat dissipation and resistance values as low as 5mΩ. Perfect for high-current applications, they offer excellent stability, minimal resistance variation over temperature, and are manufactured to strict standards including IEC60115-8 and JISC 5201-8. Suitable for automotive, industrial, and other demanding environments, these resistors ensure precision performance and durability in your designs. Purchase online today for fast, secure delivery and support.
Order your Rohm Series GMR high power low ohmic chip resistor today and give your electronic projects the dependable quality and precise current measurement they deserve.
Frequently Asked Questions
Where can I buy ROHM GMR100HTBFMR033?
You can click on the BUY or RFQ button to purchase GMR100HTBFMR033 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part GMR100HTBFMR033?
You can download the GMR100HTBFMR033 datasheet or visit the ROHM website for support.
Who is the manufacturer of GMR100HTBFMR033?
ROHM
