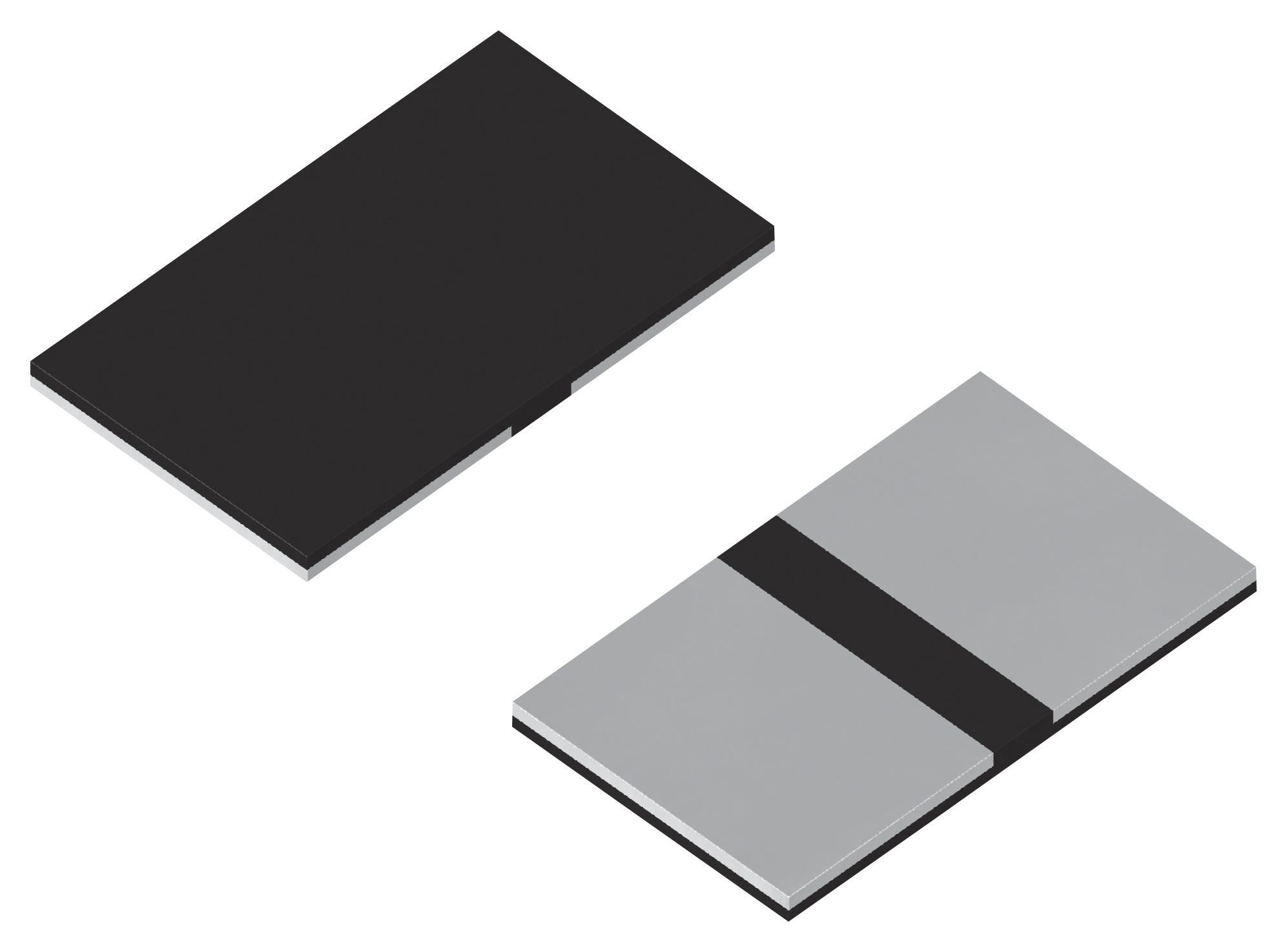

ROHM GMR100HTBFQR047 High Power Shunt Resistor
High power low ohmic chip shunt resistor suitable for precise current measurement and high heat dissipation applications. The GMR series resistors feature excellent temperature coefficient of resistance (TCR) characteristics and resistances ranging from 5mΩ to 220mΩ, with power ratings between 3W and 5W. They are designed for automotive and industrial uses, ensuring reliability under thermal stress. Constructed with copper alloy and offering UL 94V-0 flammability rating, these resistors are ideal for high current circuits requiring low resistance and exceptional performance, compliant with IEC60115-8 standards.
ROHM GMR100HTBFQR047 High Power Shunt Resistor Specifications:
- Power Rating: 3W to 5W
- Resistance Range: 5mΩ to 220mΩ
- Tolerance: F(±1%)
- Resistance Code: 4 digits, e.g., R047 for 47mΩ
- Size: 6432 (2512) mm (inch): 6.40 x 3.20
- Material: Copper alloy with high heat dissipation
- Flammability: UL 94V-0
- Operating Temperature Range: -55°C to +170°C
- Temperature Coefficient of Resistance: Excellent TCR characteristics
- Compliance Standards: IEC60115-8, JISC 5201-8
- Features: High power, low ohmic, suitable for high current measurement
- Package: Embossed tape compatible with surface mounting
Buy the Rohm Series GMR High Power Low Ohmic Resistor: GMR100HTBFQR047
Purchase the Rohm Series GMR high power low ohmic resistor online now for your automotive and industrial projects. Designed for high reliability, it features power ratings of 3W to 5W, resistance range from 5mΩ to 220mΩ, and excellent heat dissipation. These resistors boast smooth TCR characteristics and are constructed from durable copper alloy, ensuring consistent performance under thermal load. Ideal for precise current measurement, they meet IEC60115-8 standards, come in a compact size, and are compatible with surface mount technology for easy integration into complex circuits.
Order your Rohm Series GMR high power low ohmic shunt resistor today and enhance your high current measurement systems with reliable performance and excellent heat dissipation.
