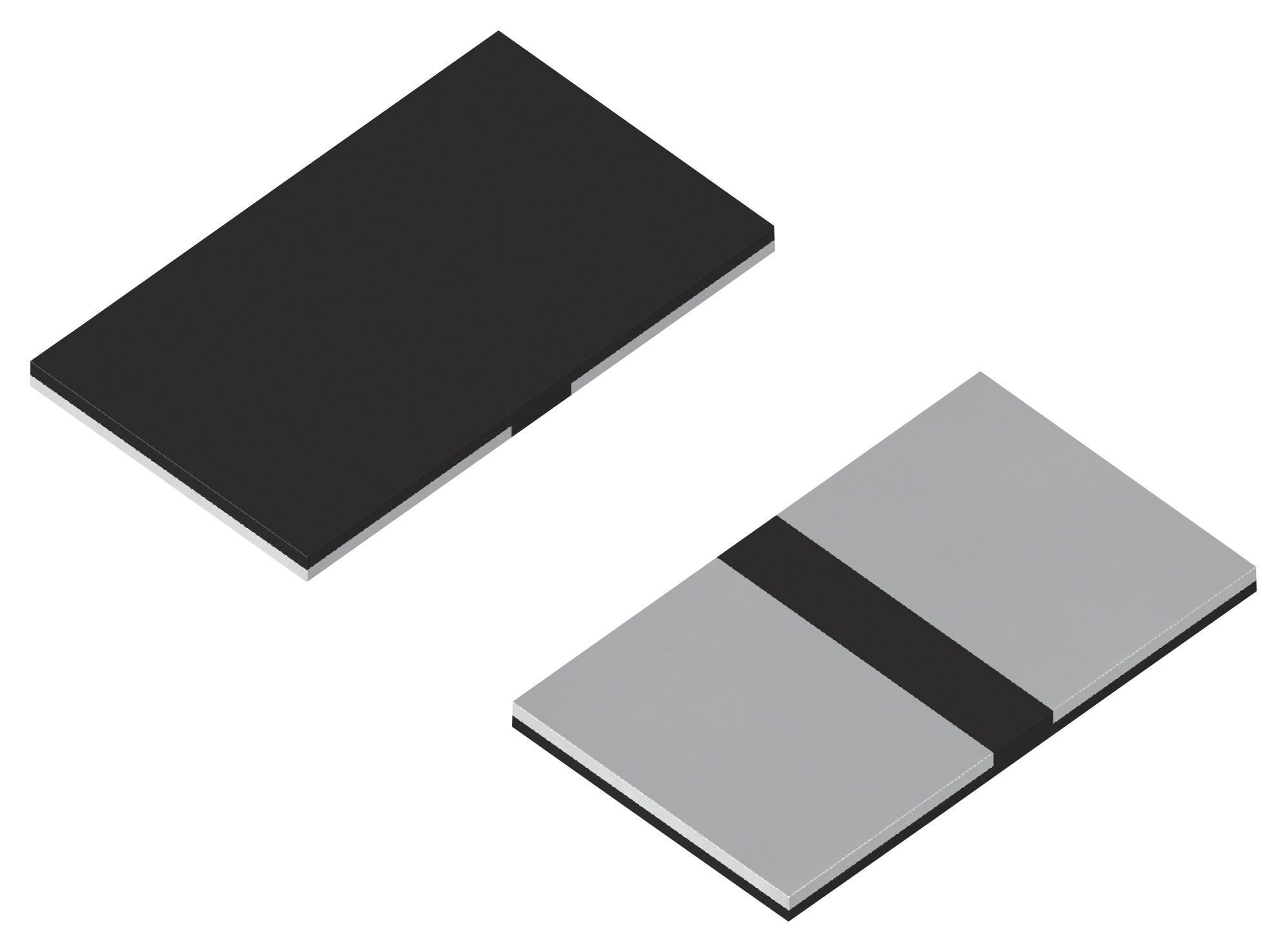

ROHM GMR50HJBFWR082 High Power Low Ohmic Chip Resistor
High power low ohmic chip shunt resistor with excellent heat dissipation and precise resistance values ranging from 5mΩ to 220mΩ. Designed for high current applications, it features high power ratings up to 10W and outstanding temperature coefficients, ensuring stability and reliability in automotive and industrial circuits. These resistors are manufactured with a robust construction for effective heat management, making them ideal for current sensing and measurement in demanding environments, with a variety of resistance options and proven compliance to IEC and JISC standards.
ROHM GMR50HJBFWR082 High Power Low Ohmic Chip Resistor Specifications:
- Power Rating: 3W to 10W depending on model
- Resistance Range: 5mΩ to 220mΩ (E24 series)
- Tolerance: ±1%
- Temperature Coefficient: ±41 ppm/°C
- Operating Temperature Range: -65°C to +170°C
- Dimensions: GMR50 (5025) 5.00×2.50×0.40 mm, GMR100 (6432) 6.40×3.20×0.40 mm, GMR320 (7142) 7.10×4.20×0.40 mm
- Material: Metal foil, ceramic substrate
- Heat Dissipation: High heat resistance and dissipation capability
- Compliance: IEC60115-8, JISC 5201-8
Buy the ROHM Series GMR High Power Low Ohmic Chip Resistor: GMR50HJBFWR082
Purchase the ROHM GMR series high power low ohmic chip resistor online today to benefit from its robust design, high thermal stability, and precise resistance values up to 220mΩ. Perfect for high current measurement in automotive, industrial, and power circuits, these resistors offer excellent heat dissipation and are rated up to 10W, ensuring durability and performance under demanding conditions. Order now to enhance your project’s reliability with high-quality, precision resistors designed for demanding environments.
Order your ROHM Series GMR50HJBFWR082 high power low ohmic chip resistor today and ensure reliable current sensing for demanding industrial applications.
Frequently Asked Questions
Where can I buy ROHM GMR50HJBFWR082?
You can click on the BUY or RFQ button to purchase GMR50HJBFWR082 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part GMR50HJBFWR082?
You can download the GMR50HJBFWR082 datasheet or visit the ROHM website for support.
Who is the manufacturer of GMR50HJBFWR082?
ROHM
