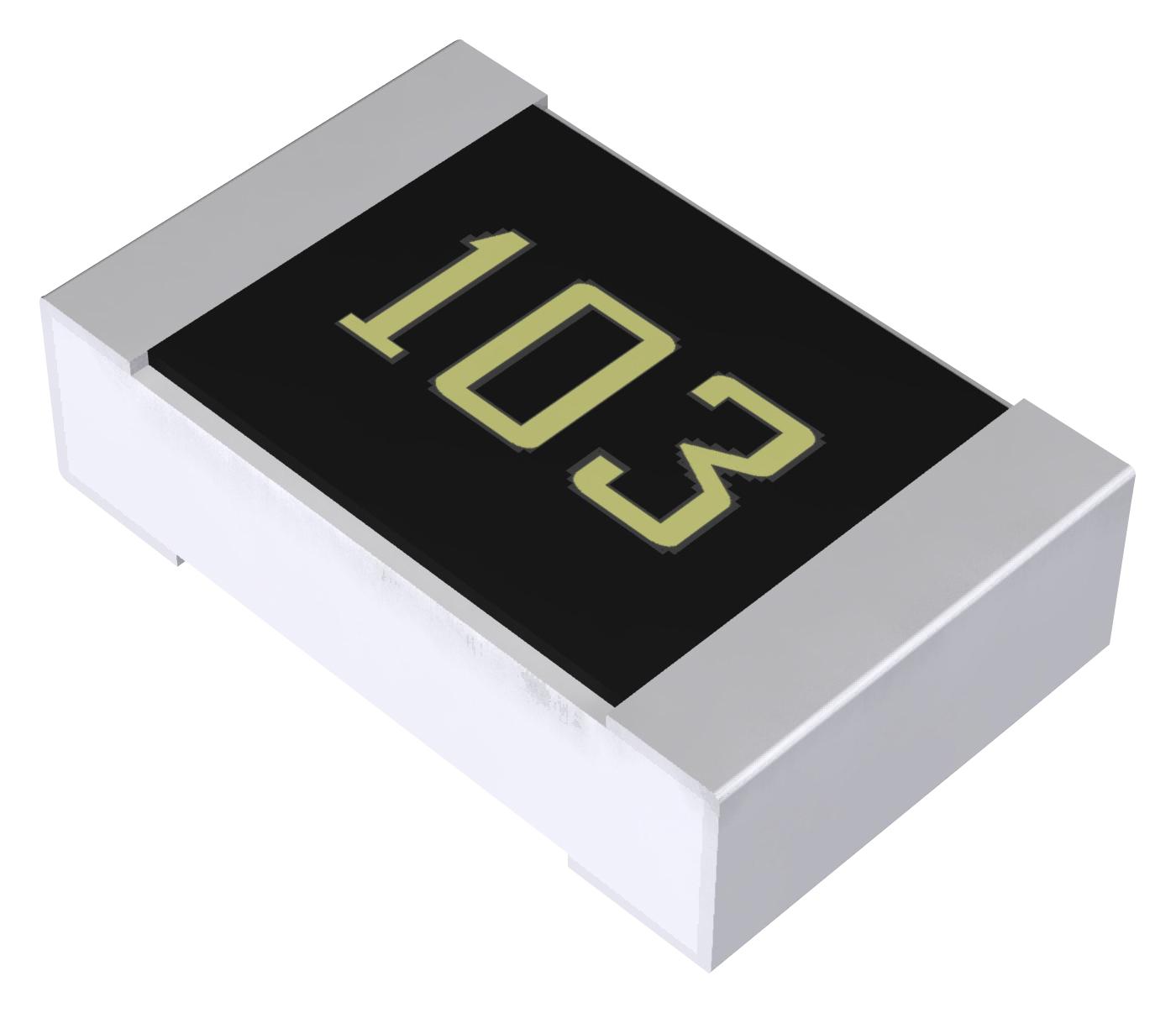

ROHM KTR10EZPF1000 High Voltage Chip Resistor
This high voltage resistance chip resistor series is suitable for use in high voltage circuits such as camera flash systems. ROHM's KTR series resistors are certified for ISO9001 and ISO/TS16949 standards, ensuring quality and reliability. Available in various sizes including 0603, 0805, 1206, and 1210, with resistance ranges up to 4,000 ohms. These resistors feature excellent voltage tolerance, temperature stability between -55°C to +155°C, and robust construction to withstand overloads and soldering heat, making them ideal for demanding electronic applications.
ROHM KTR10EZPF1000 High Voltage Chip Resistor Specifications:
- Sizes: 0603 (1608), 0805 (2012), 1206 (3216), 1210 (3225)
- Resistance Range: up to 4,000 ohms
- Tolerance: ±1%, ±5%
- Temperature Range: -55°C to +155°C
- Rated Voltage: 50V to 400V depending on size
- Power Dissipation: 0.1W to 0.125W
- Certification: ISO9001, ISO/TS16949, AEC-Q200
- Resistance Coefficient: ppm/°C varies by series
- Compatibility: RoHS compliant
- Packaging: Paper tape, embossed and reel options
- Overload Voltage: 500V to 1200V depending on model
- Derating curve applies above 70°C ambient temperature
- Soldering: Compatible with reflow and flow soldering processes
- Application: High voltage circuits, camera flash, automotive
- Reliability: Undergoes rigorous testing for resistance variation, solderability, and solvent resistance
Buy the Buy ROHM KTR Series High Voltage Chip Resistors Part Number KTR10EZPF1000 Online
Purchase the ROHM KTR10EZPF1000 high voltage resistor series online today. Engineered for high voltage circuits like camera flashes and automotive applications, these resistors offer excellent voltage tolerance, reliability, and compliance with international quality standards such as ISO9001 and TS16949. Available in various sizes including 0603, 0805, 1206, and 1210, with resistance up to 4000 ohms and tolerance of ±1% or ±5%. Ensure your electronic designs are both robust and efficient with these precision resistors, supported by our fast, reliable online ordering.
Get ROHM KTR10EZPF1000 today—designed for high voltage stability and extended durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy ROHM KTR10EZPF1000?
You can click on the BUY or RFQ button to purchase KTR10EZPF1000 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part KTR10EZPF1000?
You can download the KTR10EZPF1000 datasheet or visit the ROHM website for support.
Who is the manufacturer of KTR10EZPF1000?
ROHM
