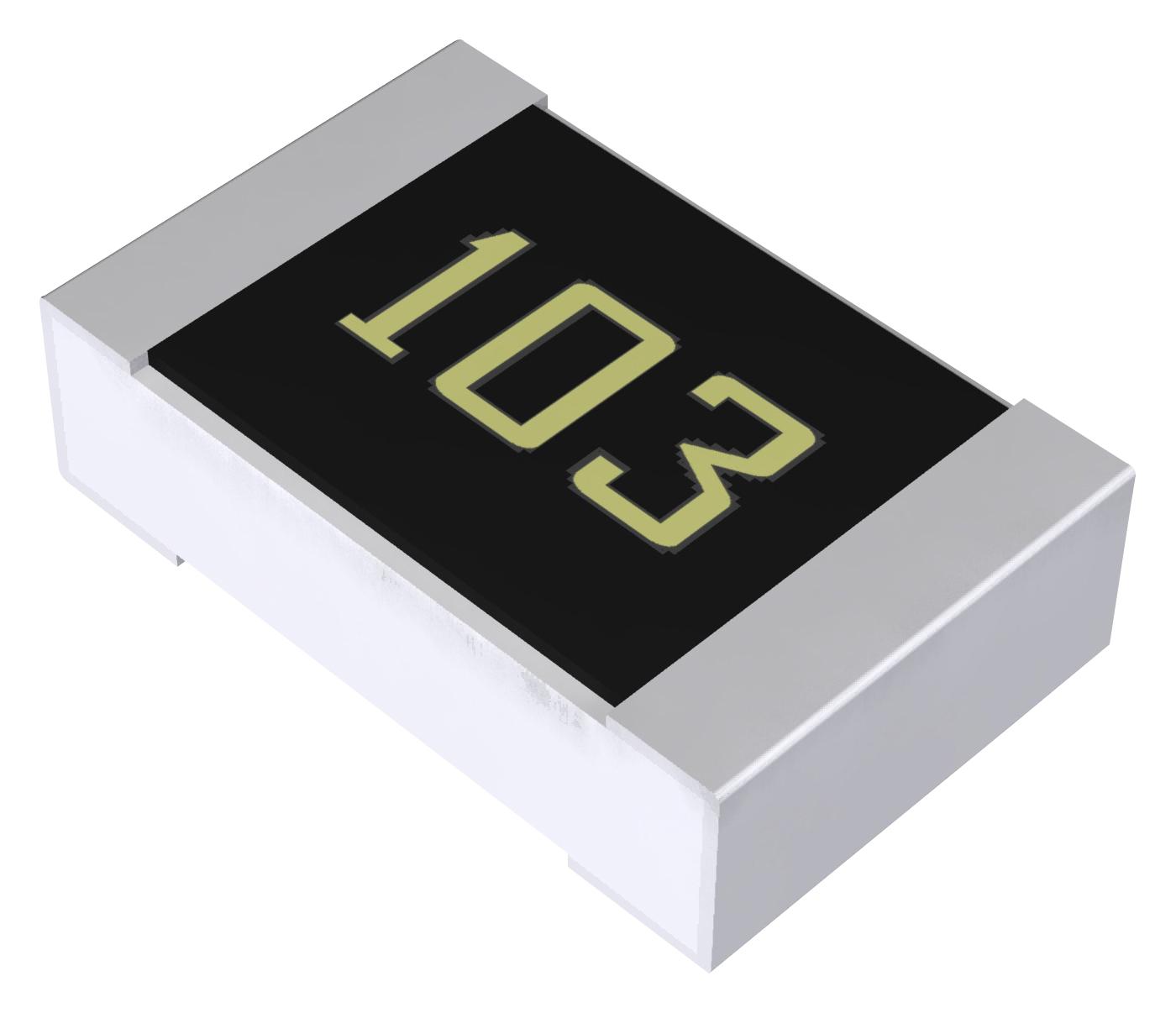

ROHM KTR10EZPF1003 High Voltage Chip Resistor
The KTR series high voltage chip resistors are designed for use in high voltage circuits, such as camera flash systems, offering twice the rated voltage of conventional resistors. Certified under ISO9001, ISO/TS16949, and compliant with AEC-Q200 standards, these resistors feature various sizes like 0603, 0805, 1206, and 1210, with resistance ranges up to 5.0 MΩ. Their robust construction ensures high reliability in demanding applications, providing excellent thermal stability and resistance performance over a wide temperature range from -55°C to +155°C. Ideal for automotive, industrial, and high voltage electronics, they support surface-mount assembly with precise dimensions and marking standards.
ROHM KTR10EZPF1003 High Voltage Chip Resistor Specifications:
- Size: 0603, 0805, 1206, 1210 mm and inch sizes
- Resistance Range: up to 5.0 MΩ
- Resistance Tolerance: ±1%, ±5% depending on model
- Temperature Range: -55°C to +155°C
- Rated Power: varies by size, e.g., 0.1W to 0.25W
- Certification: ISO9001, ISO/TS16949, AEC-Q200
- Maximum Overload Voltage: up to 1200V for larger sizes
- Packaging: Tape form, paper and embossed tape options
- Physical Dimensions: Precision-milled with marking according to IEC and JISC standards
- Lead Pitch: 4.0 mm for larger chips, 1.0–2.54 mm for smaller sizes
- Protection: Coated with rosin-ethanol for solderability
- Compliance: IEC60115-8, JISC 5201-8
Buy the Buy ROHM KTR Series High Voltage Chip Resistors Part Number KTR10EZPF1003 Online
Purchase the ROHM KTR series high voltage chip resistor online today and enhance your electronic projects with components built for durability and precision. These resistors provide excellent resistance stability, thermal performance, and high voltage handling capabilities, making them ideal for high voltage systems like camera flashes and industrial equipment. With certifications including ISO9001 and compliance with AEC-Q200, they guarantee quality and reliability. Place your order now and experience seamless online purchasing coupled with fast delivery, ensuring your projects stay on schedule and achieve optimal performance.
Order your ROHM KTR10EZPF1003 high voltage chip resistor today and ensure your circuits perform reliably under demanding high voltage conditions.
Frequently Asked Questions
Where can I buy ROHM KTR10EZPF1003?
You can click on the BUY or RFQ button to purchase KTR10EZPF1003 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part KTR10EZPF1003?
You can download the KTR10EZPF1003 datasheet or visit the ROHM website for support.
Who is the manufacturer of KTR10EZPF1003?
ROHM
