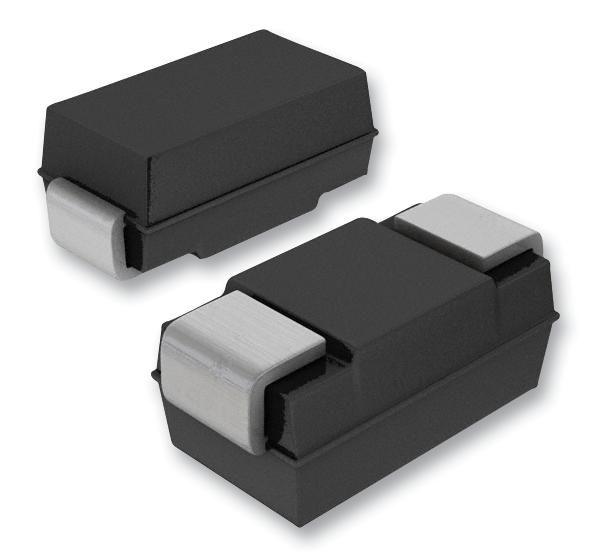

ROHM PTZTFTE2516B Voltage Regulator Diode
The PTZTF16B is a high-reliability Zener diode designed for voltage regulation with an 1000 mW power dissipation, a junction temperature of 150°C, and a storage temperature range of -55°C to 150°C. Packaged in an embossed tape reel suitable for automated assembly, it features a silicon epitaxial planar structure. Its electrical characteristics include a Zener voltage of approximately 16.2 V to 18.3 V, dynamic impedance around 20-30 Ω, and a reverse current limit of 10-20 μA, making it ideal for precision voltage regulation in electronic circuits.
ROHM PTZTFTE2516B Voltage Regulator Diode Specifications:
- Power Dissipation: 1000 mW
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to 150°C
- Package: SOD106, embossed tape reel, tape width 12mm, reel size 180mm
- Structure: Silicon epitaxial planar
- Dimensions (Min. - Max.): A: 1.80 - 2.20 mm; b: 1.30 - 1.70 mm; D: 2.40 - 2.80 mm; E: 4.30 - 4.70 mm; He: 4.70 - 5.30 mm; Lp: 0.90 - 1.50 mm
- Reverse Voltage Range: approximately 16.2 V to 18.3 V for PTZTF16B series
- Dynamic Impedance: around 20-30 Ω
- Zener Voltage: approximately 16.2V to 18.3V at 20mA
- Reverse Current: 10-20 μA
- Test Voltage: 40ms
Buy the ROHM Series PTZTF16B Zener Diode: PTZTFTE2516B
Purchase the ROHM Series PTZTFTE2516B high-reliability Zener diode online today and enjoy advanced voltage regulation capabilities. Designed for precision, this 16V diode with a 1000mW power rating ensures dependable performance in various electronic applications. Its compact SOD106 package facilitates easy surface mounting, making it ideal for automated assembly. Accurate Zener voltage, low dynamic impedance, and reliable reverse current characteristics make this diode perfect for circuit stabilization, protecting sensitive components, and ensuring device safety. Get yours now for optimal circuit protection!
Order your ROHM Series PTZTFTE2516B high-reliability Zener diode today and ensure stable voltage regulation in your electronic projects with confidence.
Frequently Asked Questions
Where can I buy ROHM PTZTFTE2516B?
You can click on the BUY or RFQ button to purchase PTZTFTE2516B from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part PTZTFTE2516B?
You can download the PTZTFTE2516B datasheet or visit the ROHM website for support.
Who is the manufacturer of PTZTFTE2516B?
ROHM
