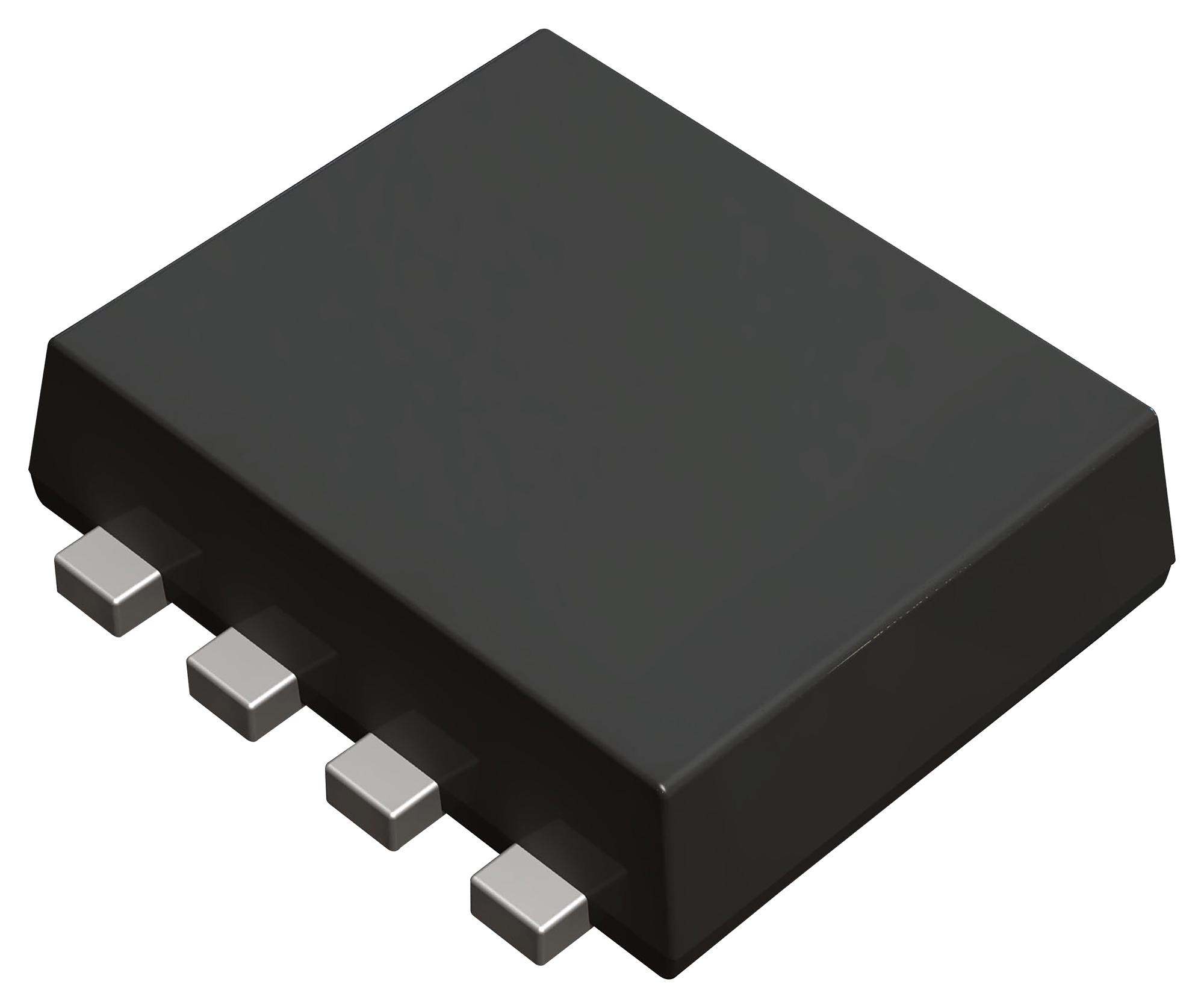

ROHM QH8MA4TCR Power MOSFET
The QH8MA4TCR is a dual N-channel and P-channel power MOSFET in a compact TSMT8 package, designed for high efficiency switching applications. It features low on-resistance, high current capacity, and excellent thermal performance. Suitable for motor drives, power supply regulation, and load switching, this device supports up to 30V drain-source voltage and 9A continuous drain current. Its RoHS compliant, halogen-free construction ensures environmental friendliness and reliability in demanding industrial environments.
ROHM QH8MA4TCR Power MOSFET Specifications:
- Package: TSMT8
- Drain-Source Voltage: 30V
- Continuous Drain Current: +9.0A
- Pulsed Drain Current: +18A
- Gate-Source Voltage: +20V / -20V
- Power Dissipation: 1.5W
- Thermal Resistance, Junction to Ambient: 83.3°C/W
- Body Diode Forward Voltage: 1.2V
- Body Diode Pulse Current: 18A
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -55°C to +150°C
- RoHS compliant, Halogen Free
- Marking: MA4
- Reel Size: 180mm, Tape Width: 8mm, Basic Units: 3000 pcs
Buy the ROHM QH8MA4TCR – Reliable Power MOSFET for Industrial Applications
Order the ROHM QH8MA4TCR power MOSFET online today to optimize your industrial circuits with a compact, high-performance device. Its low on-resistance and high current capacity ensure efficient load switching and power management. Suitable for demanding environments, this device features RoHS compliance and excellent thermal characteristics. Easy to integrate into various applications such as motor drives, power supplies, and load control systems. Secure your supply chain and enhance reliability by purchasing this durable, environmentally friendly power MOSFET online now.
Buy ROHM QH8MA4TCR now and experience unmatched efficiency and reliability in high-current switching applications.
Frequently Asked Questions
Where can I buy ROHM QH8MA4TCR?
You can click on the BUY or RFQ button to purchase QH8MA4TCR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part QH8MA4TCR?
You can download the QH8MA4TCR datasheet or visit the ROHM website for support.
Who is the manufacturer of QH8MA4TCR?
ROHM
