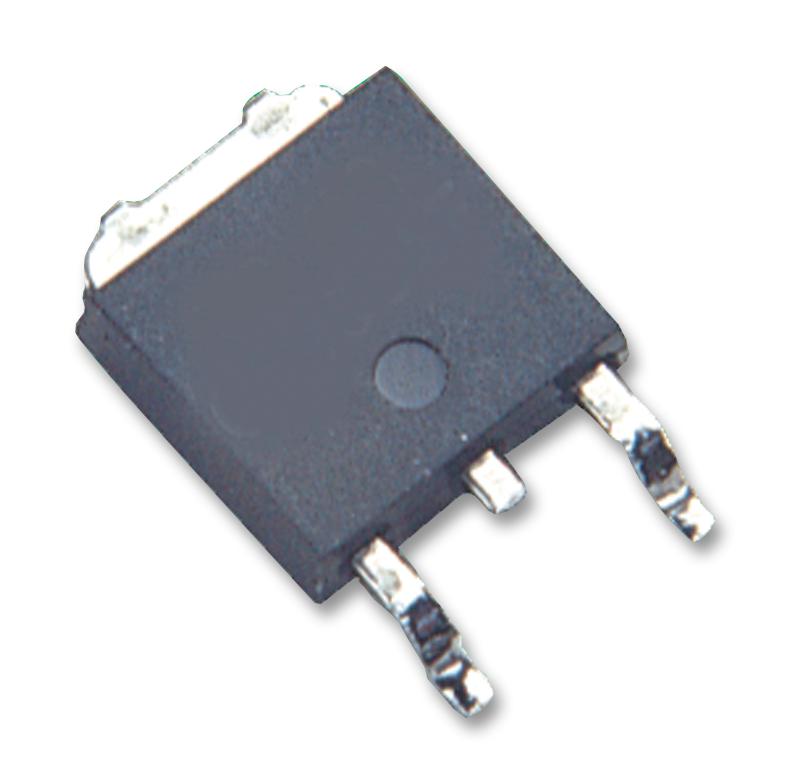

ROHM R6007JNJGTL Power MOSFET
The R6007JNJ is a high-voltage power MOSFET suitable for switching applications, featuring a maximum drain-source voltage of 600V and a continuous drain current of 7A. It offers low on-resistance, fast switching, and reverse recovery times, making it ideal for high-efficiency power supplies and industrial equipment. Packaged in an embossed tape for automated assembly, this device complies with RoHS standards, ensuring environmentally friendly manufacturing. Its thermal resistance and electrical characteristics support reliable operation in high-temperature environments, making it a robust choice for demanding electronic systems.
ROHM R6007JNJGTL Power MOSFET Specifications:
- Drain-Source Voltage: 600V
- Continuous Drain Current: 7A
- Pulsed Drain Current: 21A
- Gate-Source Voltage: +30V
- Avalanche Energy: 132mJ
- Power Dissipation: 96W
- Junction Temperature: -55°C to +150°C
- Thermal Resistance Junction-Case: 1.29°C/W
- Thermal Resistance Junction-Ambient: 80°C/W
- Gate Threshold Voltage: 5.0V to 7.0V
- On-Resistance (Tj=25°C): 0.600Ω to 0.780Ω
- Body Diode Reverse Recovery Time: 60ns
- Dimensions: TO-263S package, 6mm width
- RoHS Compliant, Pb-Free, Reflow Soldering Up to 265°C
Buy the ROHM Series R6007JNJ Power MOSFET: 600V 7A High-Voltage Switch
Purchase the ROHM Series R6007JNJ power MOSFET online today and elevate your electronic designs with this robust, high-voltage device. Featuring 600V maximum drain-source voltage, 7A continuous current, low Rds(on), and fast switching capabilities, it is suitable for industrial power supplies, motor control, and switching applications. The device's RoHS compliance ensures environmentally friendly manufacturing, and compact TO-263S packaging simplifies assembly. Secure your supply chain by ordering online now and benefit from quick delivery, technical support, and guaranteed genuine ROHM components for demanding electrical environments.
Order your ROHM Series R6007JNJ high-voltage MOSFET today and ensure your industrial projects benefit from reliable, fast-switching power components.
