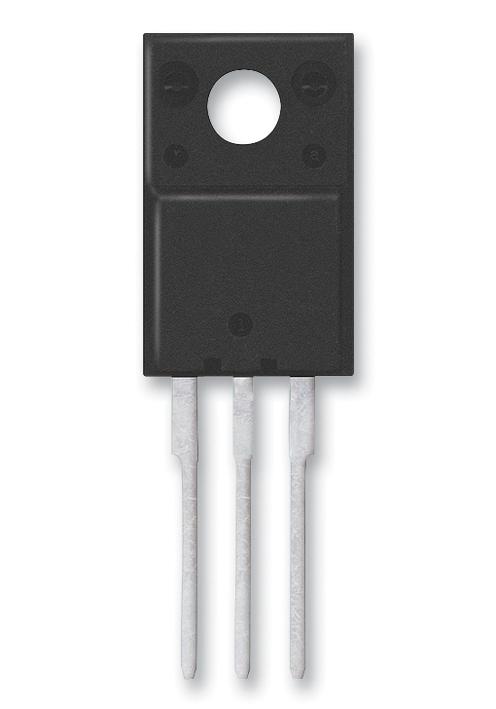

ROHM R8005ANX Power MOSFET
The R8005ANX is a high-voltage, high-current N-channel power MOSFET designed for switching power supply applications. It features low on-resistance, fast switching speeds, and a guaranteed gate-source voltage of +30V, making it suitable for efficient and reliable operation in power management circuits. With an 800V drain-source voltage rating and 5A continuous drain current, it supports high-voltage switching, while its Pb-free lead plating ensures compliance with RoHS standards. Its compact TO-220FM package simplifies installation and thermal management, making it ideal for robust power electronic systems.
ROHM R8005ANX Power MOSFET Specifications:
- Drain-Source Voltage: 800 V
- Continuous Drain Current: 5 A at Tj=25°C
- Pulsed Drain Current: 20 A
- Gate-Source Voltage: +30 V
- Power Dissipation: 51 W
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-Case: 2.41 °C/W
- Thermal Resistance, Junction-Ambient: 70 °C/W
- Body Diode Forward Voltage: 15 V at 5 A
- Reverse Recovery Time: 554 ns
- Gate Charge: 21 nC
- Package: TO-220FM, Bulk
Buy the ROHM Series R8005ANX Power MOSFET: R8005ANX
Discover the ROHM Series R8005ANX power MOSFET, offering 800V drain-source voltage, 5A continuous drain current, and low Rds(on) for optimal power efficiency. Its fast switching capability and RoHS-compliant lead-free construction make it perfect for advanced power supply designs. With a robust TO-220FM package, this MOSFET ensures easy mounting and effective thermal management. Ideal for high-voltage switching circuits, this component guarantees dependable performance, reduces energy loss, and enhances system durability. Experience superior power handling with ROHM’s proven quality and buy online now for swift delivery.
Order your ROHM Series R8005ANX high-voltage power MOSFET today and ensure efficient, reliable power switching for demanding electronic projects.
Frequently Asked Questions
Where can I buy ROHM R8005ANX?
You can click on the BUY or RFQ button to purchase R8005ANX from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part R8005ANX?
You can download the R8005ANX datasheet or visit the ROHM website for support.
Who is the manufacturer of R8005ANX?
ROHM
