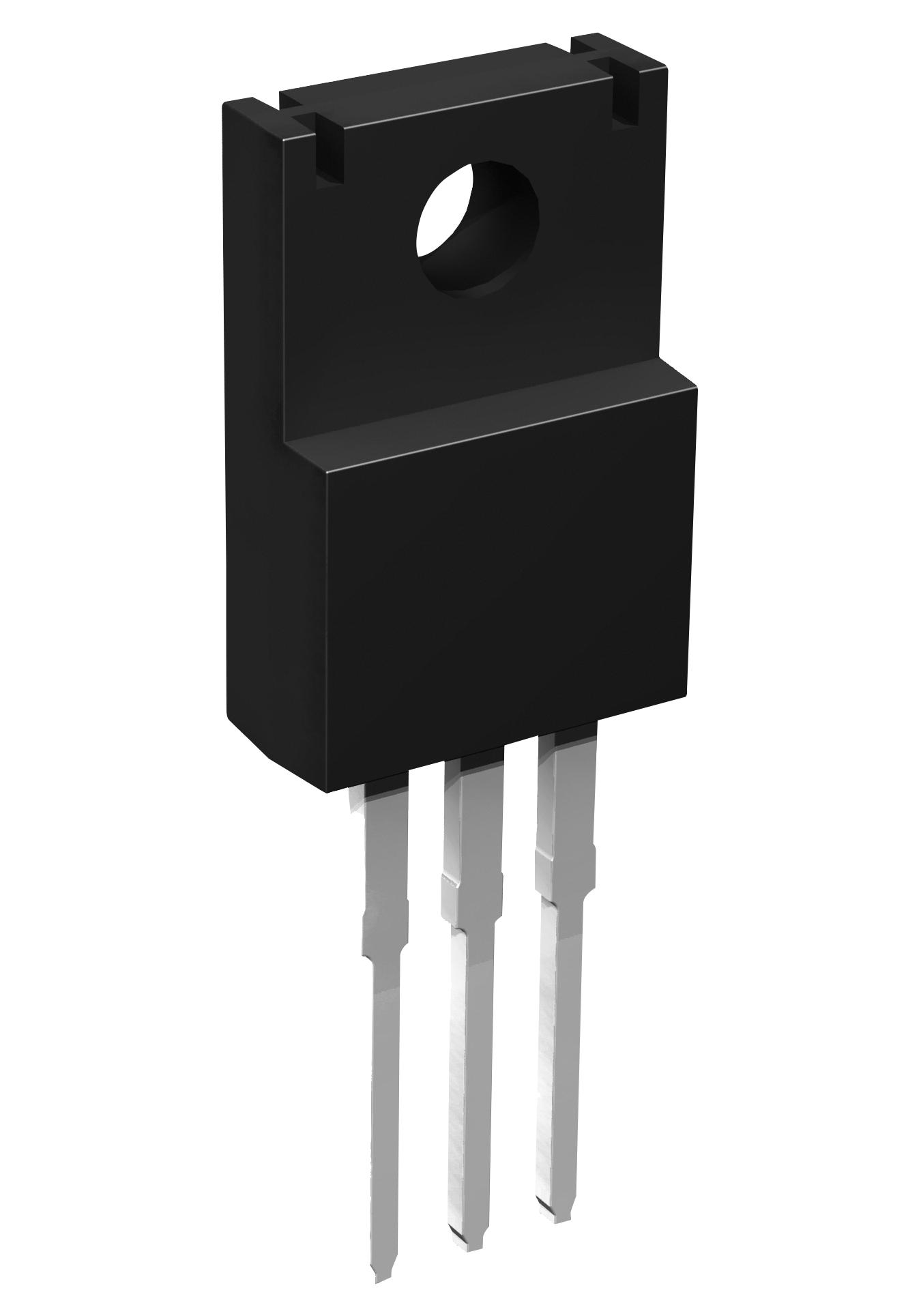

ROHM RB218T60HZC9 Schottky Barrier Diode
The RB218T-60HZ is a high-reliability Schottky barrier diode suitable for switching power supplies and fast switching applications. It features a low forward voltage drop of approximately 0.83V at 10A and a reverse voltage of 60V. Constructed with silicon epitaxial planar technology, the diode exhibits low thermal resistance of 2°C/W and can handle a repetitive peak reverse voltage of 60V. Its robust design ensures stable performance under various operating conditions, making it ideal for efficient rectification and high-speed switching in power management circuits.
ROHM RB218T60HZC9 Schottky Barrier Diode Specifications:
- Repetitive peak reverse voltage Vem: 60V at Duty 50%
- Reversal voltage VR: 60V direct reverse voltage
- Average forward rectified current: 20A at T=25°C
- Non-repetitive forward current surge peak: 100A
- Operating junction temperature: -150°C to +150°C
- Forward voltage Ve: approx. 0.83V at 10A
- Reverse current Ip: 5A at 60V
- Thermal resistance junction to case: 2°C/W
- Manufactured with silicon epitaxial planar structure
- Package: TO220FN, dimensions: 7mm x 4.0mm x 15mm approximately
- RoHS compliant and AEC-Q101 qualified
- Suitable for switching power supplies, high-speed rectification, and durable power circuitry applications
Buy the Buy Rohm Schottky Barrier Diode Part Number RB218T-60HZ Online
Purchase the Rohm RB218T-60HZ Schottky barrier diode online today and benefit from high reliability, low forward voltage drop, and excellent thermal performance. Its 60V reverse voltage and 20A current capacity make it ideal for efficient switching power supplies, fast rectification, and robust power management applications. Easy to integrate into your design, this diode ensures stable operation across a wide temperature range, helping improve system efficiency and durability. Order now to enhance your electronic circuits with a trusted power component.
Buy Rohm RB218T-60HZ diode now and experience unmatched reliability and high-speed performance for your power supply and rectification needs.
