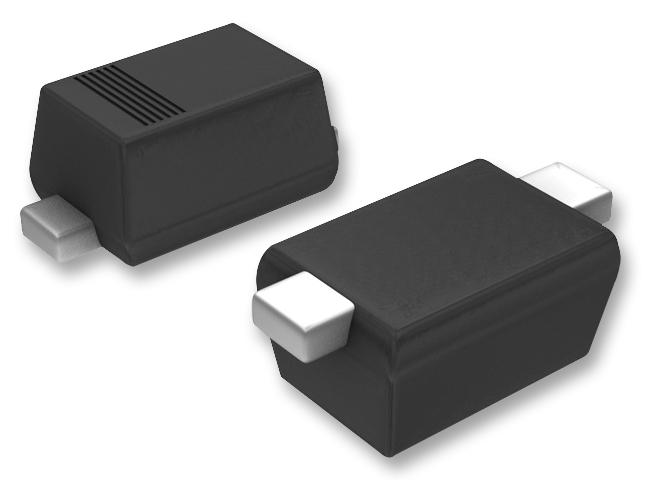

ROHM RB521SM60FHT2R Schottky Barrier Diode
The RB521SM-60FH is a compact Schottky barrier diode designed for small current rectification applications. Qualified under AEC-Q101, it features ultra-small mold design, high reliability, and low forward voltage of approximately 0.30V at 200mA. Its construction includes a silicon epitaxial planar type with JEDEC SOD-523 package dimensions. It supports a maximum repetitive peak reverse voltage of 60V and a forward current of 200mA, making it suitable for precise, low-voltage, high-reliability circuits in automotive and electronic devices. The diode is mounted on glass epoxy boards, ensuring excellent thermal and electrical performance in compact space-saving designs.
ROHM RB521SM60FHT2R Schottky Barrier Diode Specifications:
- Repetitive peak reverse voltage: 60 V
- Reverse voltage: 60 V
- Average forward rectified current: 200 mA
- Non-repetitive forward surge peak current: 1 A
- Operating junction temperature: -125°C to +125°C
- Forward voltage at 200mA: Max 1.06 V
- Reverse current at 60V: Max 100 pA
- Packaging: JEDEC SOD-523 (SC-79)
- Construction: Silicon epitaxial planar type
- Mounted on glass epoxy board
- Size: 2.0 mm x 1.25 mm x 0.6 mm
- Temperature range: -55°C to +125°C
- High reliability with AEC-Q101 qualification
- Ultra-small mold type for space-constrained designs
- Suitable for small current rectification in automotive electronics
- Supports high-temperature operation and low leakage
- Excellent thermal dissipation in surface-mount design
Buy the ROHM Series EMD2 Schottky Barrier Diode: RB521SM-60FH
Purchase the ROHM Series EMD2 RB521SM-60FH online today for a compact, high-reliability Schottky barrier diode ideal for small current rectification. Featuring ultra-small mold design, low forward voltage, and robust specifications exceeding industry standards, this diode is perfect for automotive electronics, high-reliability systems, and space-conscious applications. Its JEDEC SOD-523 package ensures easy mounting, excellent thermal management, and consistent electrical performance. Order now to upgrade your circuits with this efficient and durable diode, ensuring optimal operation under demanding conditions.
Order your ROHM Series EMD2 RB521SM-60FH today and ensure reliable, low-voltage rectification in your automotive and small electronic projects.
Frequently Asked Questions
Where can I buy ROHM RB521SM60FHT2R?
You can click on the BUY or RFQ button to purchase RB521SM60FHT2R from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RB521SM60FHT2R?
You can download the RB521SM60FHT2R datasheet or visit the ROHM website for support.
Who is the manufacturer of RB521SM60FHT2R?
ROHM
