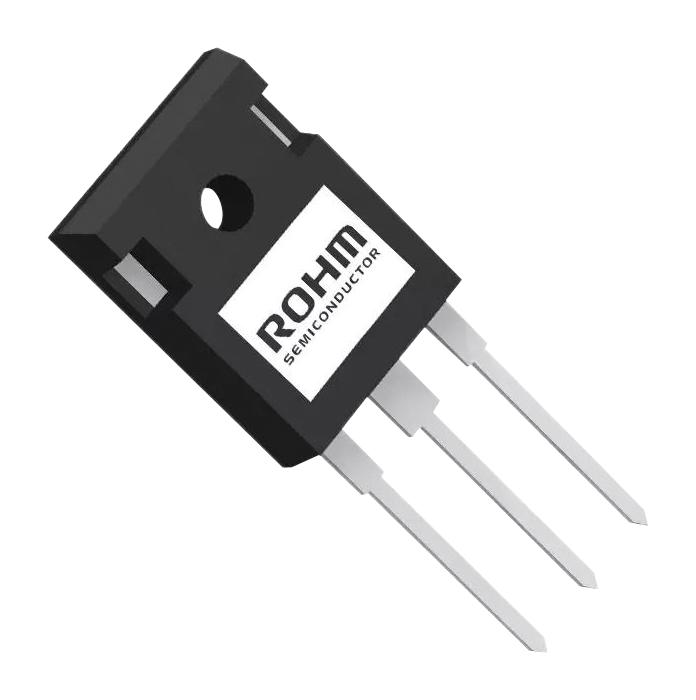

ROHM RGS80TSX2HRC11 High Power Trench IGBT
The RGS80TSX2HR is a high-voltage, high-current trench IGBT designed for automotive and industrial applications. It features a 1200V collector-emitter voltage, 40A collector current at 100°C, and a low saturation voltage of approximately 1.7V. The device boasts qualified safety characteristics such as short circuit withstand time of 10μs, Pb-free lead plating, RoHS compliance, and a power dissipation capacity of up to 555W at 25°C. Its thermal resistance is 0.27°C/W, making it efficient for demanding power switching tasks with reliable performance across junction temperatures from -40°C to +175°C.
ROHM RGS80TSX2HRC11 High Power Trench IGBT Specifications:
- Collector-Emitter Voltage: 1200 V
- Collector Current (at 25°C): 80 A
- Collector Current (at 100°C): 40 A
- Pulsed Collector Current: 120 A
- Power Dissipation: 555 W at 25°C, 277 W at 100°C
- Gate-Emitter Voltage: +30 V
- Thermal Resistance (Junction to Case): 0.27°C/W
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Short Circuit Withstand Time: 10 μs
- Circuit configuration: TO-247N packaging, RoHS compliant, Pb-Free Lead Plating
- Features include low saturation voltage, short circuit withstand, qualified to AEC-Q101 standards, and high power handling capacity.
Buy the Buy ROHM RGS80TSX2HR Part Number RGS80TSX2HR Online
Purchase the ROHM RGS80TSX2HR online today for robust 1200V high-voltage switching, 40A continuous current capacity, and exceptional efficiency. Designed for demanding industrial and automotive power systems, this device offers low saturation voltage, short circuit withstand capability, and RoHS compliance. Its thermal resistance of 0.27°C/W ensures excellent heat dissipation, enabling reliable long-term operation across wide temperature ranges from -40°C to +175°C. Secure your supply of this high-performance IGBT for resilient power management solutions now.
Buy ROHM RGS80TSX2HR now and experience unmatched reliability and high-performance power switching for industrial and automotive applications.
Frequently Asked Questions
Where can I buy ROHM RGS80TSX2HRC11?
You can click on the BUY or RFQ button to purchase RGS80TSX2HRC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGS80TSX2HRC11?
You can download the RGS80TSX2HRC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGS80TSX2HRC11?
ROHM
