ROHM RGTH50TK65DGC11 High-Voltage Power IGBT
The RGTHS50TK65D is a 650V, 25A trench IGBT designed for high-speed switching, low saturation voltage, and soft recovery diode. Its features include a low collector-emitter saturation voltage of approximately 1.6V at 25A, high pulsed collector current of 100A, and low switching loss with soft switching capabilities. Suitable for power conversion, UPS systems, and motor drives, it offers excellent thermal performance with a junction-to-case resistance of 2.51°C/W. Its RoHS-compliance and Pb-free plating ensure environmental safety and compatibility with modern electronic systems.
ROHM RGTH50TK65DGC11 High-Voltage Power IGBT Specifications:
- Collector - Emitter Voltage: 650V
- Gate - Emitter Voltage: +30V
- Collector Current (at 25°C): 26A
- Collector Current (at 100°C): 16A
- Pulsed Collector Current: 100A
- Diode Forward Current: 15A
- Power Dissipation (at 25°C): 59W
- Power Dissipation (at 100°C): 29W
- Operating Junction Temperature: -40 to +175°C
- Storage Temperature: -55 to +175°C
- Junction - Case Thermal Resistance: 2.51°C/W
- Diode Reverse Recovery Time: 58ns
- Reverse Bias Safe Operating Area: Full square
- Gate Capacitance (at Vge=15V): 1410pF
- Total Gate Charge: 49nC

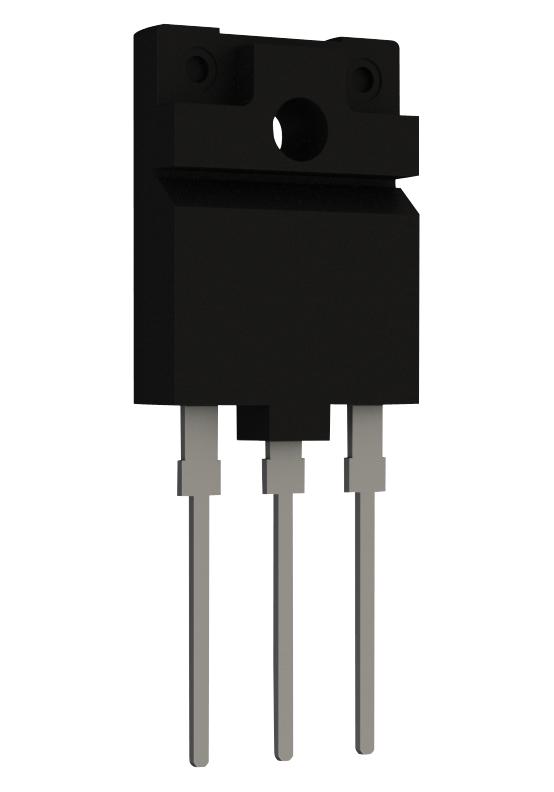

Buy the Buy ROHM RGTHS50TK65D Part Number RGTHS50TK65D Online
Purchase the ROHM RGTHS50TK65D online today to elevate your electronic systems with a high-voltage, high-current trench IGBT. Designed for fast switching, low saturation voltage, and efficient power management, this device is ideal for motor drives, power supplies, and UPS systems. Its robust construction features a 650V rating, 25A capacity, and a built-in fast recovery diode, ensuring high reliability and thermal performance. Get dependable, RoHS-compliant power control components shipped directly to your door, supporting your professional needs efficiently.
Order your ROHM Series RGTHS50TK65D high-voltage IGBT today and enhance your power switching applications with reliable efficiency and fast switching capabilities.
Frequently Asked Questions
Where can I buy ROHM RGTH50TK65DGC11?
You can click on the BUY or RFQ button to purchase RGTH50TK65DGC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGTH50TK65DGC11?
You can download the RGTH50TK65DGC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGTH50TK65DGC11?
ROHM
