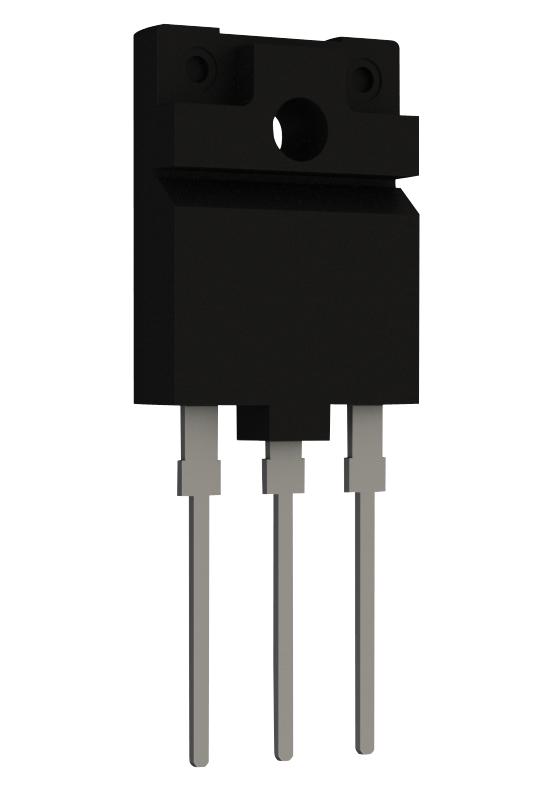

ROHM RGTH50TK65GC11 Power IGBT Switch
The RGTH50TK65 is a 650V, 25A field stop trench IGBT designed for high-speed switching and efficient power control. Features include low collector-emitter saturation voltage of approximately 1.6V at 25A and 25°C, high reverse bias safe operating area, and rugged thermal performance with a junction-to-case resistance of 2.51°C/W. Ideal for power conditioners, UPS systems, and inverter circuits, this device offers low switching losses, soft switching capabilities, and RoHS compliance. Its robust ratings ensure reliable operation in demanding industrial applications, providing excellent efficiency and thermal management in a compact package.
ROHM RGTH50TK65GC11 Power IGBT Switch Specifications:
- Collector - Emitter Voltage: 650 V
- Gate - Emitter Voltage: +30 V
- Collector Current at 25°C: 26 A
- Collector Current at 100°C: 16 A
- Pulsed Collector Current: 100 A
- Power Dissipation at 25°C: 59 W
- Power Dissipation at 100°C: 29 W
- Operating Junction Temperature: -40 to +175 °C
- Storage Temperature: -55 to +175 °C
- Thermal Resistance IGBT Junction to Case: 2.51°C/W
- Collector - Emitter Breakdown Voltage: 650 V
- Vge Threshold: 45-65 V
- Gate - Emitter Leakage Current: <200 nA at Vge=+30 V
- Gate Charge: 49 nC
- Switching Times (Turn-on/Turn-off): ~27-107 ns depending on conditions
Buy the ROHM Series RGTH50TK65 Power IGBT: 650V 25A Trench Switch
Purchase the ROHM RGTH50TK65 power IGBT online today and enjoy superior efficiency, fast switching speeds, and robust thermal management. Perfect for power conditioners, UPS, and inverter circuits, this 650V, 25A device ensures reliable operation in demanding industrial environments. Its low saturation voltage and soft switching characteristics reduce losses and improve system efficiency. Enjoy fast delivery, comprehensive support, and a trusted source for high-quality electronic components that meet RoHS standards. Upgrade your power system with confidence now.
Buy ROHM RGTH50TK65 power IGBT now and experience unmatched reliability and performance in high-speed power switching applications.
Frequently Asked Questions
Where can I buy ROHM RGTH50TK65GC11?
You can click on the BUY or RFQ button to purchase RGTH50TK65GC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGTH50TK65GC11?
You can download the RGTH50TK65GC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGTH50TK65GC11?
ROHM
